Eversolo
Eversolo DAC-Z10 DAC Headphone Amplifier Preamp NEW ARRIVAL
Eversolo DAC-Z10 DAC Headphone Amplifier Preamp NEW ARRIVAL
IN STOCK.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
IN STOCK.
The new Eversolo DAC-Z10 is a flagship high-resolution DAC and headphone amplifier that unites precision engineering, warmth, and purity. Built on Eversolo’s Fully Isolated Architecture and dual AKM Velvet Sound™ modules, it delivers ultra-low distortion, wide dynamic range, and lifelike analog musicality.
The DAC-Z10 features Eversolo's Fully Isolated Architecture, which segregates digital and analog circuits to eliminate interference and preserve sonic integrity. Dual AK4191 + AK4499 DAC pairs handle independent left and right channels with precision, while a fully balanced preamplifier employs sophisticated dual-channel R2R volume control for exceptional dynamic range and minimal distortion. Three dedicated linear power supplies ensure each channel operates in an ultra-low-noise environment, while XLR and RCA inputs with +10dB gain accommodate any source component.
The DAC-Z10 features a built-in FPGA that shapes IIS data and refines the clock. Every digital signal is thus optimized to its purest form before reaching the DAC — you can truly hear the difference.
The DAC-Z10 features a multi-core USB audio processor, offering higher processing speed and bandwidth to ensure lossless transmission of high-resolution audio data.
- USB Audio In DSD512 Native, PCM 768KHz/32Bit
- Optical / Coaxial PCM 192KHz/24Bit, DSD64 Dop
The DAC-Z10 via it's IIS digital audio input, the DAC-Z10 offers 8 switchable modes and supports up to 768kHz/ 32Bit PCM and DSD512 Native. Its fully isolated hardware design separates signal and ground between devices, ensuring clean signals and enhanced audio clarity.
The DAC-Z10 is equipped with HDMI ARC, supporting both ARC and eARC modes for effortless integration into your home theater system. It not only decodes high-fidelity music but also delivers cinematic sound with stunning clarity and realism.
The DAC-Z10 has a dedicated 6.35 mm headphone amplifier module that auto-detects impedance and adjusts gain, delivering powerful, detailed sound. High, medium, and low gain settings let you tailor playback to different headphones and listening preferences.
- High Gain Output 1 W（16 Ω）/ 1 W（32 Ω）/ 0.16 W（300 Ω）
The DAC-Z10 features a built-in Qualcomm QCC5125 Bluetooth module. Whether streaming from your phone or connecting directly via tablet, it delivers a high-fidelity wireless listening experience.
Pre-Order. Initial Shipment To Canada Is Due In End Of November Or So.
Please Pre-Order To Obtain One From The Initial Shipment. Thank You.
The DAC-Z10’s chassis is crafted from aviation-grade aluminum. Rigid yet lightweight, it blends precision engineering with refined texture. Sleek in design, yet full of presence.

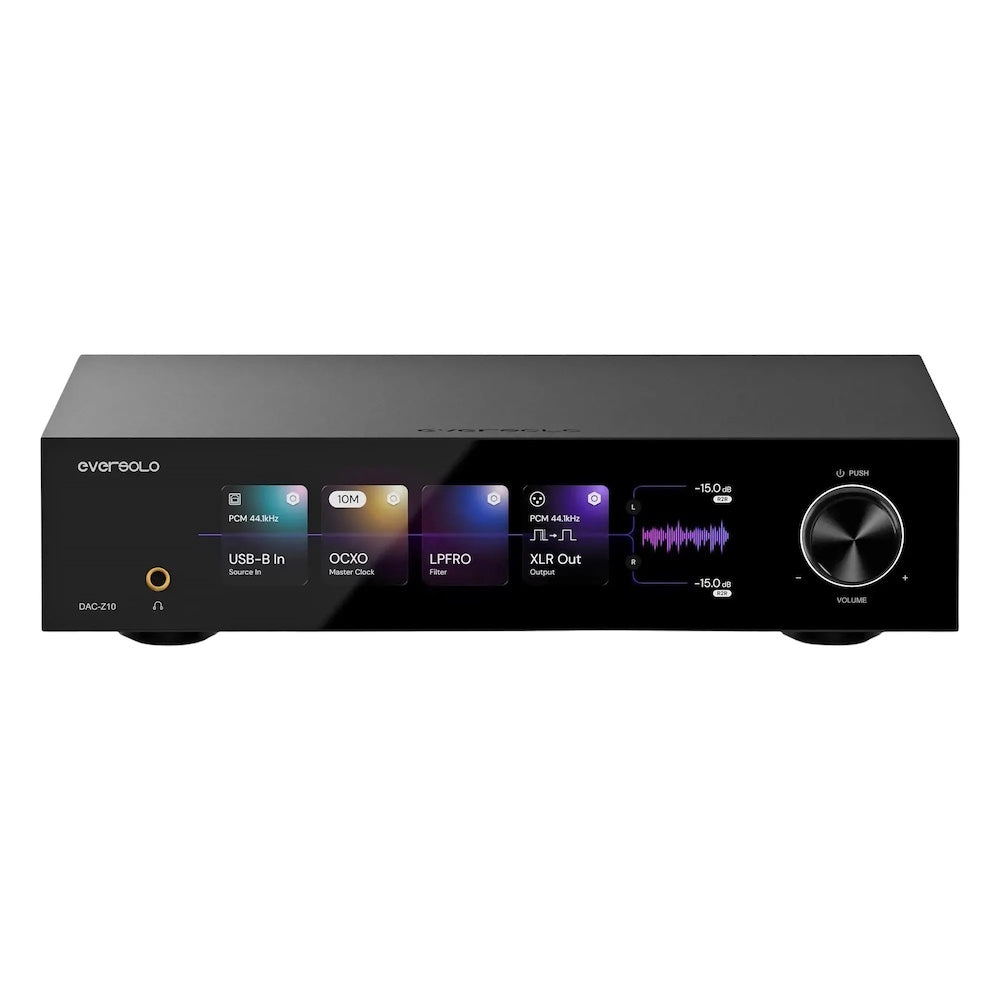

The DAC-Z10 features an 8.8-inch IPS touchscreen with a clear and intuitive interface. Switching inputs, adjusting volume, and checking format information are all at your fingertips.
Specifications:
| Eversolo DAC-Z10 | |
| Display | 8.8" IPS |
| Chassis Material | Aluminium alloy |
| Main Processor | DCP8568 |
| DAC | Left Channel: AK4191+AK4499 |
| Right Channel: AK4191+AK4499 | |
| Audio Processor | Multi-core USB audio processor |
| OPA Chip | OPA1612 |
| Power | Triple ultra-low noise linear power supplies |
| Audio Inputs and Outputs | |
| Bluetooth Audio Input | Qualcomm QCC5125 Bluetooth module, Bluetooth version: BT5.0; supports SBC/AAC Bluetooth audio protocols |
| USB-B Audio Input | Compatible with Windows 10 and above, macOS, Android, and iOS; supports up to Stereo DSD512 / PCM 768kHz 32Bit |
| IIS Input | Supports 8 mode configurations, up to Stereo DSD512 / PCM 768kHz 32Bit |
| AES/EBU Input | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Optical Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| Coaxial Audio Inputs *2 | Up to Stereo PCM 192KHz/24Bit / DSD64 DoP |
| ARC Input | Up to Stereo PCM 192KHz/24Bit |

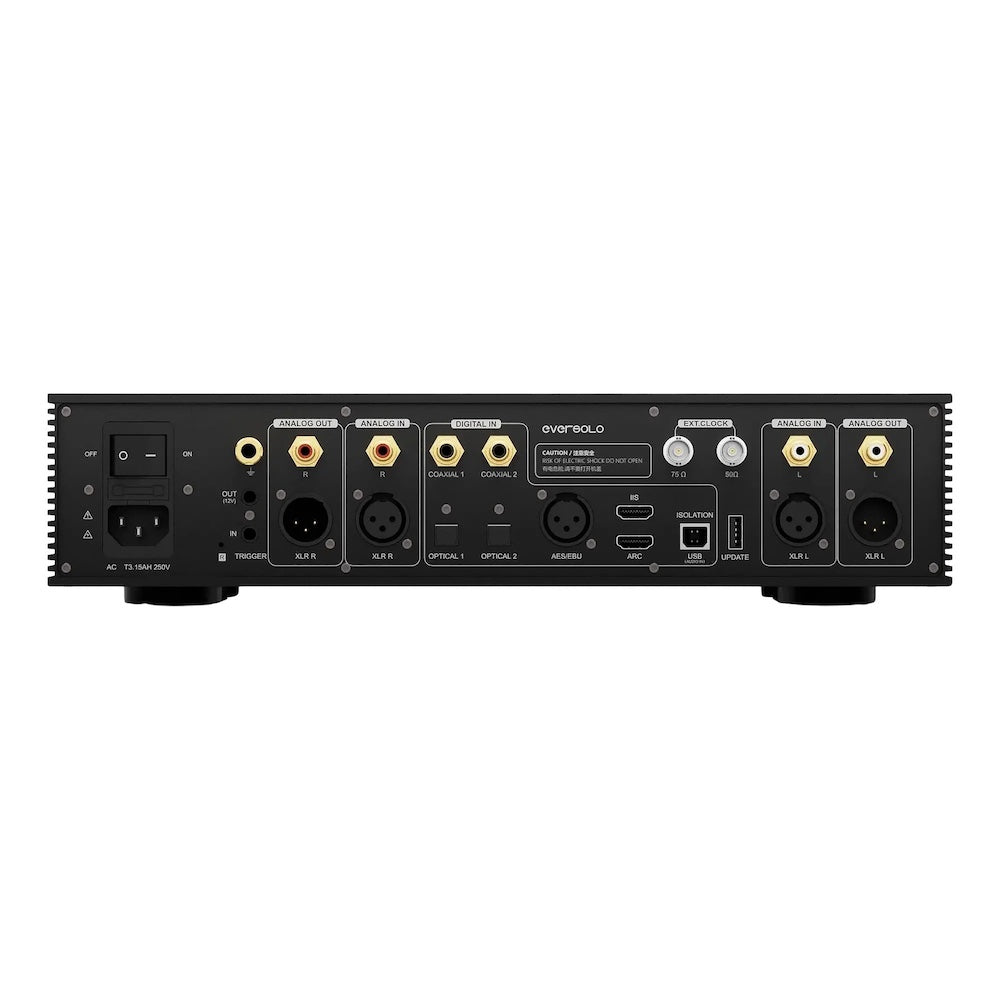

| Analog Audio Inputs | XLR (Balanced), RCA |
| Analog Audio Outputs | |
| Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended | Pre-out: XLR (Balanced), RCA; Headphone out: 6.35mm single-ended |
| External Clock Input | Supports 10M/25M clock inputs with 50Ω or 75Ω impedance |
| Headphone Output | |
| Recommended Headphone Impedance | 16–300Ω (Low Gain: 16–32Ω / High Gain: 32–300Ω) |
| Audio Characteristics | |
| XLR Output Audio Characteristics | Output Level (Vrms): 5Vrms @ 0dBFS |
| THD+N @ No-wt: 0.00008% @ 1kHz (-122dB @ 1kHz) | |
| Noise @ No-wt: <1.2uVrms | |
| SNR @ A-wt: 130dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| Crosstalk: -130dB | |
| DNR @ A-wt: 130dB | |
| RCA Output Audio Characteristics | |
| Output Level (Vrms): 2.5Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.000097% @ 1kHz (-120dB @ 1kHz) | |
| Noise @ No-wt: <1.5uVrms | |
| SNR @ A-wt: 128dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| Crosstalk: -123dB | |
| DNR @ A-wt: 128dB | |
| Headphone Audio Characteristics (Low Gain Mode) | |
| Output Level (Vrms): 4Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.0003% @ 1kHz (-110dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 124dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 124dB | |
| Headphone Audio Characteristics (Mid Gain Mode) | |
| Output Level (Vrms): 5.6Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.00018% @ 1kHz (-115dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 126dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 126dB | |
| Headphone Audio Characteristics (High Gain Mode) | |
| Output Level (Vrms): 7Vrms @ 0dBFS | |
| THD+N @ No-wt: 0.00013% @ 1kHz (-118dB @ 1kHz) | |
| Noise @ No-wt: <2.5uVrms | |
| SNR @ A-wt: 127dB | |
| Frequency Response: 20Hz–20kHz (±0.1dB) | |
| DNR @ A-wt: 127dB | |
| Other Information | |
| Power Supply | AC 100~240V 50/60Hz |
| USB Ports | USB2.0*1（only for firmware upgrade） |
| Control Methods | Touchscreen control, remote control, mobile App control |
| Rated Power Consumption |
32W |
|
Dimensions 265mm (L) × 310mm (W) × 78mm (H) |
