Description
Pre-Order. Initial Shipment To Canada Due In Mid To Late June Or So. Please order to obtain one from the first shipment. Thank you.
No Discounts Possible With This Product.
Affirm Cannot Be Used With This Product.
The new LAIV uDDC is a digital interface and reclocker that considerably reduces phase noise and jitter for a more natural sound rendering in an open stage. The latter is based on a Femto clock to ensure the most stable clock signal possible. Connections include USB-B, AES, I2S and coaxial, plus a galvanically isolated I2S output. Thanks to its FPGA-based signal processing, the Harmony µDDC can handle signals up to PCM 768kHz and DSD512. Finally, a 10MHz clock input is also available if you wish for an external clock to reclock your signal.
The uDDC features an FPGA (Field-Programmable Gate Array) to manage the routing and processing of complex digital signals with extremely low latency. This guarantees bit-perfect data processing for high-resolution formats such as PCM 768kHz and DSD512. In addition to the FPGA, a complex programmable logic device (CPLD) manages the synchronization of critical signals, minimizing phase noise and jitter. This division of processing tasks guarantees greater efficiency and precision for each operation
The uDDC incorporates a femto clock to reduce jitter to an infinitesimal level, guaranteeing the integrity of the digital audio signal's synchronization. This is particularly important for maintaining the transparency of audio reproduction permitted by high-resolution formats. A robust FIFO (First-In-First-Out) buffer system synchronizes incoming and outgoing signals, eliminating timing irregularities caused by the source. The result is a continuous, clocked output that retains the original sound characteristics.
The new uDDC's reclocking mechanism realigns signal synchronization using the femto clock, effectively “cleaning” the digital signal of jitter introduced by upstream devices. This improves signal integrity, as well as the clarity, dynamics and resolution of the soundstage. To maintain signal purity, the I²S output is galvanically isolated, preventing electrical interference and noise propagation from the source to downstream components.
Specifications:
| Product type | Reclocker Galvanic isolator |
| Supported sampling rates | USB-B : PCM 768kHz DSD512 I2S : PCM 768kHz DSD512 Coaxial / AES : PCM 192kHz DoP64 |

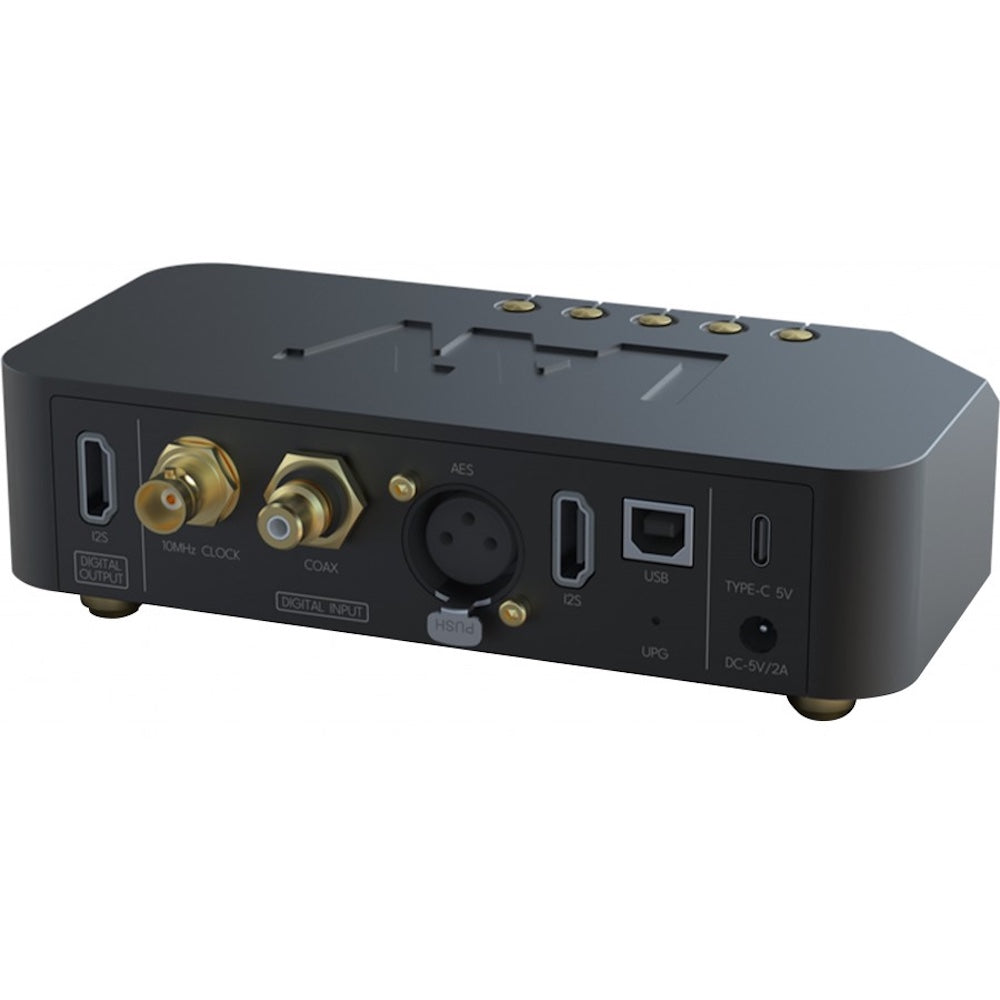

| Inputs | 1x USB-B 1x I2S via HDMI 1x AES 1x Coaxial 1x BNC 10MHz clock input |
| Output | 1x I2S via HDMI |
| Power supply ports | 1x USB-C 1x Jack DC |
| Supply voltage | 5V |
| Dimensions | 168 x 98 x 50mm |
| Weight | 600g |
| Color | Black |
| Package | 1x Laiv Audio Harmony µDDC 1x Mains adapter |
