Matrix Audio NT-1 Reference Music Server
Matrix Audio NT-1 Reference Music Server
Usually Ships Within 2 Days.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
Product Comparison:
|
Country |
Brand |
Model |
Price |
Advantages of SW |
Advantages of HW |
Weakness |
Interaction |
RoonReady |
|
CN |
MatrixAudio |
NT-1 |
$3999 |
Linux based MA Player& MA Remote App, iOS and Android phones and tablets, 8.8-inch touch display,variousstreamingservices |
Electrical isolation, SFP, external clock input, various output ports, M.2SSD |
HQ Player and Qobuz Contact Just Added. More to follow. |
App mainly, Touch display for auxiliary |
Certified |
|
KR |
Aurender |
N150 |
$3500 |
LinuxOS |
Uninterruptible power supply |
SATAdrive, 1000Mbps connection, no S/PDIF out，only USB DAC out, not support app installation |
App |
Certified |
|
CN |
Eversolo |
A10 |
$3999 |
AndroidOS |
Electrical isolation, sub out, M.2 SSD x2 |
Android OS causes the HW a short life cycle, complex OS and not conducive to sound quality, operation based on the device display |
Touch display mainly & app for auxiliary |
Certified |
|
CN |
AURALiC |
Aries G2.1 |
$5699 |
LinuxOS, Amazon, KKBOX, LightningCast |
No Android app available, not support app installation |
App |
Certified |
|
|
KR |
HifiRose |
RS130 |
$5195 |
Android OS, video playback |
15.4-inch display, OCXO, SFP, M.2 SSD, external clock input |
Android OS causes the HW a short life cycle, complex OS and not conducive to sound quality |
Touch display mainly & app for auxiliary |
Certified |
|
UK |
Innuos |
Zenith MK3 |
$6299 |
WebUI,RoonCore |
CD drive built-in, dual Ethernet |
Clunky andbuggyapp |
App |
Uncertified |
|
CN |
Lumin |
U2 |
$5000 |
LinuxOS |
DSDupsampling |
Monochrome small display, no internal storage, not support app installation |
App |
Certified |

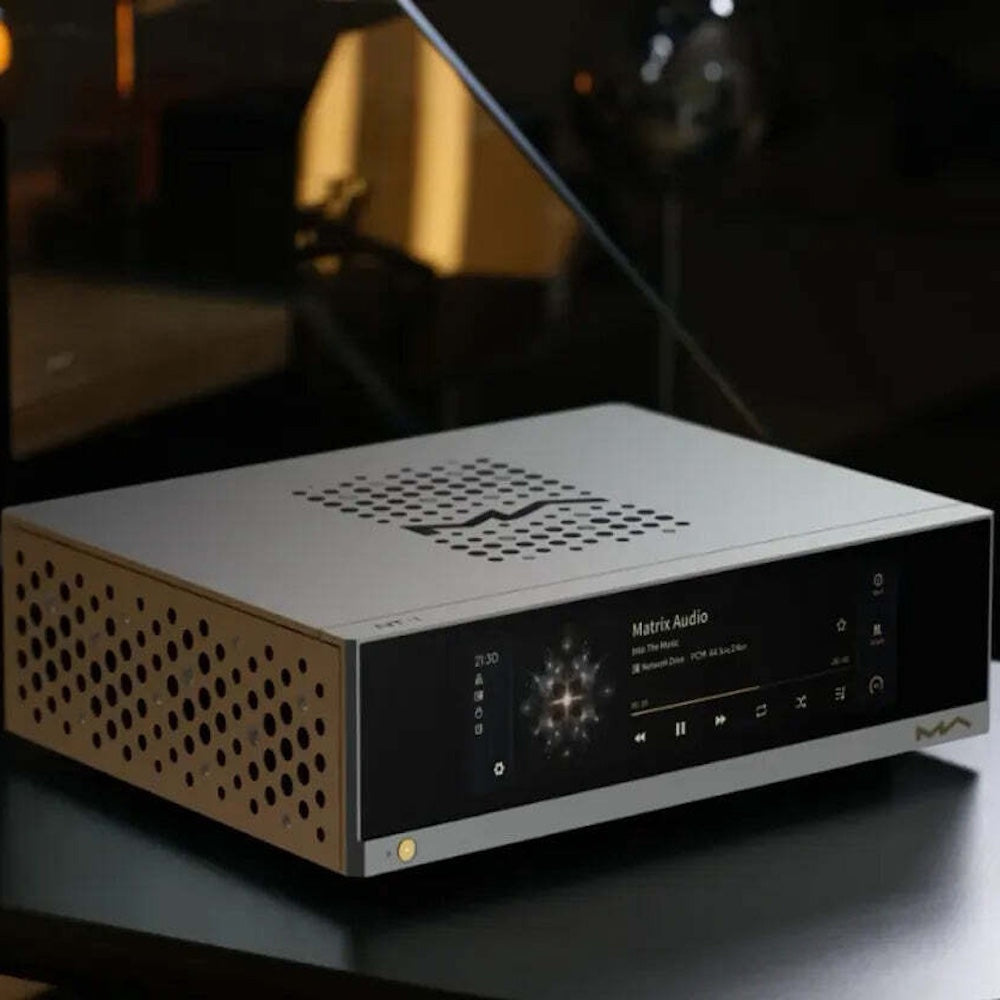

The new Matrix Audio Reference NT-1 is a music server/network transport designed for audiophiles in pursuit of perfection. This high-end digital audio transport unlocks the vast world of network streaming, extending beyond the limitations of traditional audio sources, and infuses your audio system with new energy.
NT-1 features an audio-specific USB DAC interface with electrical isolation. It not only deeply optimizes transmission noise, but also isolates the ground ware of USB port from the device ground wire, fundamentally reducing noise and interference during audio transmission and ensuring the purity of the audio signal.
It is worth mentioning that the linear power supply of NT-1 is unique, with independent windings and a precise low-noise regulator circuit, providing the USB DAC interface with a dedicated power supply isolated from the digital part, further ensuring the stability and low noise of audio transmission, and bringing you the ultimate Hi-Fi experience.
The bottom of the device features an NVMe SSD slot, allowing for the installation of an SSD to expand internal storage. A specially designed ultra-low-noise independent power supply ensures a quiet operating environment for the SSD, which surpasses what an ordinary computer can offer.
This clock system derives from the flagship model of Matrix Audio, which has dual modes. In internal clock mode, the femtosecond clock provides a reference for the RF synthesizer, outputting a highly stable, low-phase-noise audio clock. In external clock mode, the incoming clock signals become the reference for the RF synthesizer, outputting an audio clock that is highly stable, low-phase-noise, and phase-synchronized with the input clock. When paired with Matrix Audio SC-1 audio-grade clock source, it can further tap into the audio performance potential of the device and move to an even higher level.

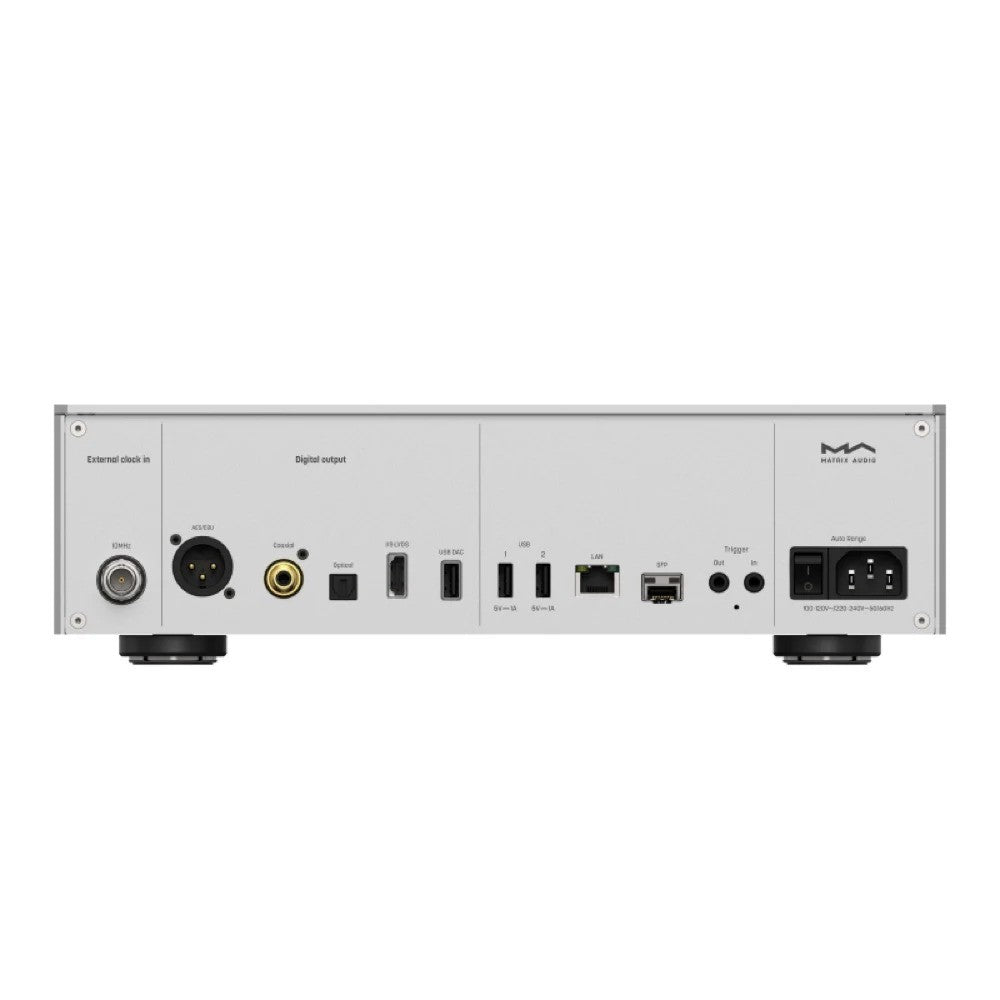

Optical, coaxial, AES/EBU and IIS-LVDS output ports are available, which can easily connect to various digital audio devices such as DACs and amplifiers to meet your diverse audio connection needs. If you connect it to an active speaker with digital input, you can also enable the digital volume function, no need to add an additional speaker controller, and the volume can be adjusted easily.
SFP connection supports Gigabit transmission.
Specifications:
| COAXIAL, OPTICAL & AES/EBU | PCM 16-24Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| DSD 2.8MHz (DoP) | |
| IIS LVDS | PCM 16-32Bit /44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz, 352.8kHz, 384kHz, 705.6kHz, 768kHz |
| DSD 2.82MHz, 3.07MHz, 5.64MHz, 6.14MHz, 11.29MHz, 12.29MHz, 22.58MHz, 24.58MHz | |
| USB DAC | Depends on the specifications supported by the connected USB DAC device. |
| The USB DAC port provides a maximum of 5V/1A low-noise power supply.SFP connection supports Gigabit transmission |
SFP: SFP Optical/Fiber cable or SFP to RJ45 modules can be connected. Connection supports Gigabit transmission.
Network
| LAN | 10/100/1000 Mbps |
| SFP | 10/100/1000 Mbps |
USB
| USB 3.0 * 2 | The USB port provides a maximum power of 5V/1A. |
| The USB port works with devices which conform to the USB mass storage standard and supports FAT, FAT32, exFAT, and NTFS file formats, but is not guaranteed to be compatible with all storage devices. |
External Clock Input
| 10MHz / 50Ω / Sine wave or square wave input |
Trigger Interface
| Trigger Input | DC 6-12V<10mA |
| Trigger Output | DC 12V/50mA |
Storage Extension
|
M.2 2280 2260 2240 NVMe PCIe SSD slot *1 The maximum power specification provided by the expansion slot is DC 3.3V/3A. |
Power Specs
| Power Voltage |
AC 100V-120V 50/60Hz or AC 220V-240V 50/60Hz Auto Range |
| Standby Power Consumption | < 5W |
| Maximum Power Consumption | < 50W |
Weight & Size
| Weight | 4.6kg (10.14 pounds) |
| Size |
Width: 330 mm (12.99 inches), Depth: 267 mm (10.51 inches), Height: 97 mm (3.82 inches) |
Accessories
| Power cable * 1 | |
| Printed material * 1 |
