Soundsmith

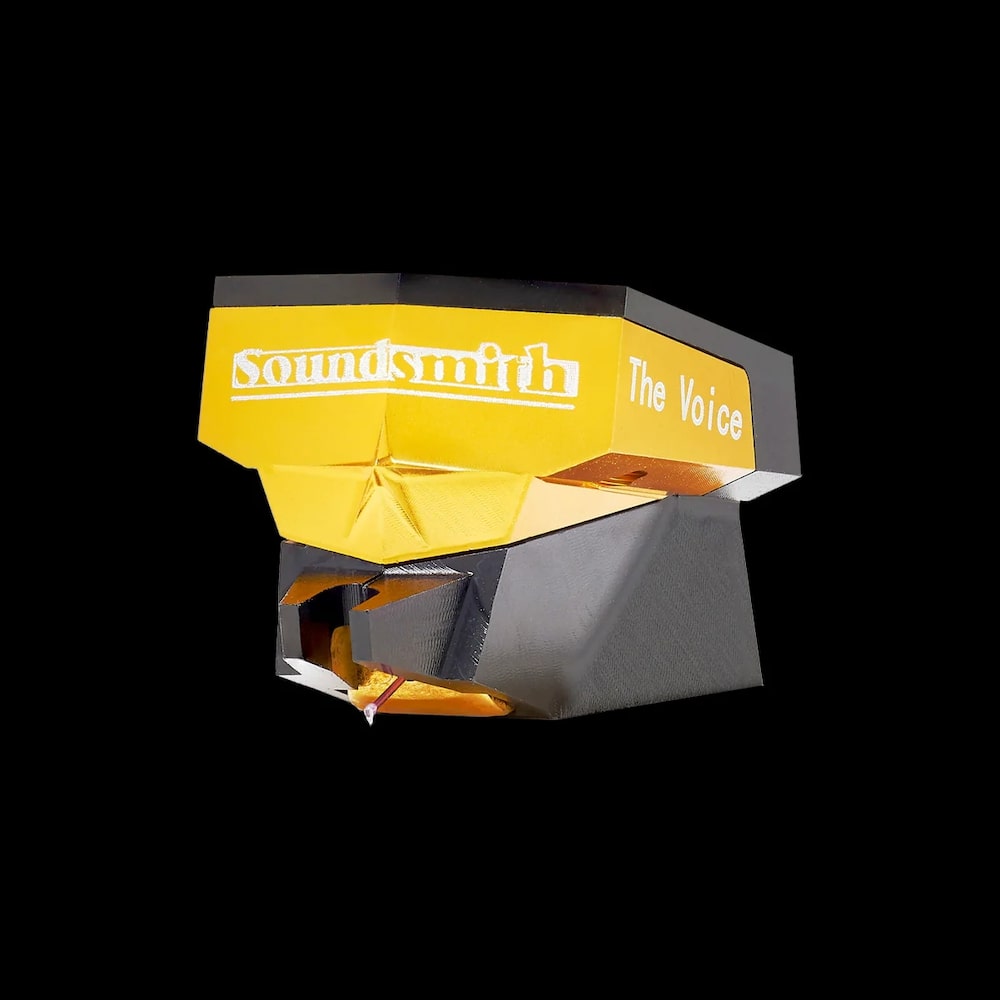

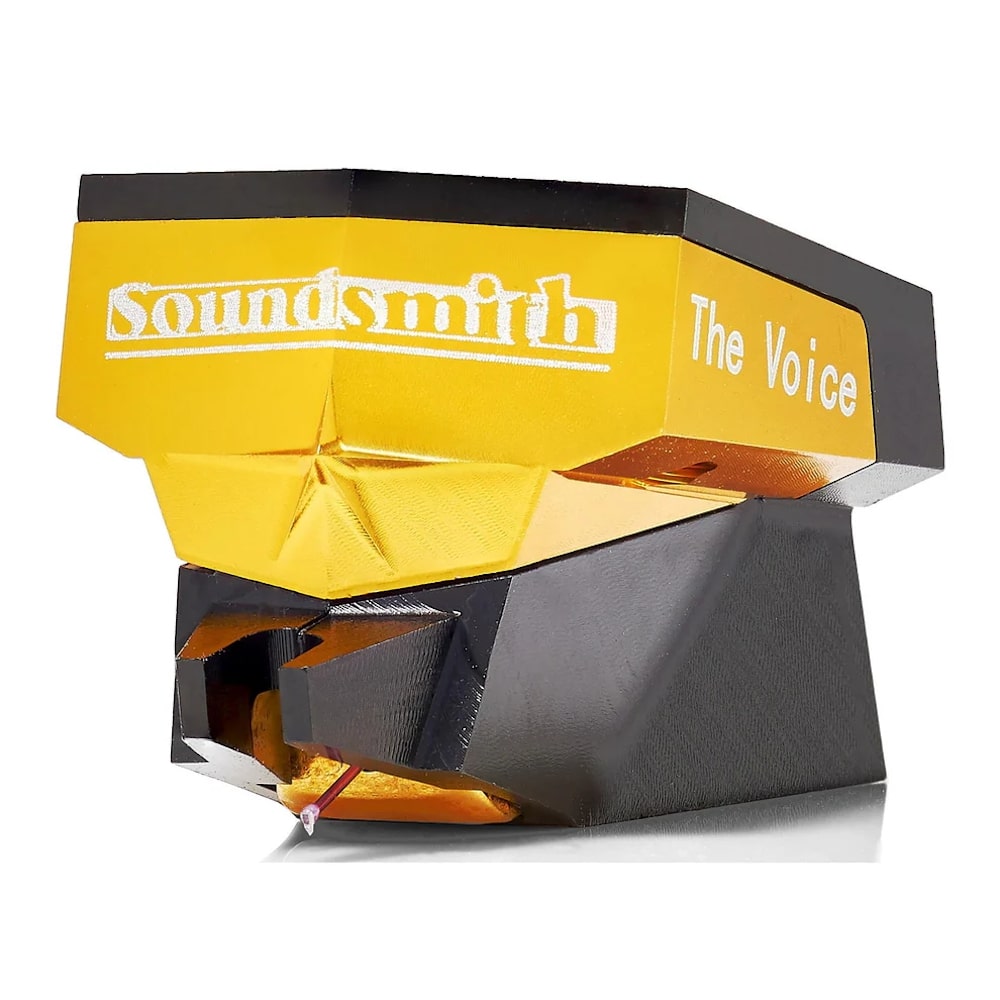

Soundsmith The Voice ES High Output Cartridge

Soundsmith The Voice ES High Output Cartridge

Regular price $4,049.93
Regular price $1,380.00 Sale price $4,049.93
Sale Featured Sold out
Shipping calculated at checkout.
The Voice

Lighting fast delivery in Canada

Canadian Warranty

Customer Experience

View full details

Description


Usually ships in 2 weeks or so.



Soundsmith's The Voice cartridge was designed to be used with a Moving Magnet preamp. Once you’ve heard “The Voice”, you’ll never go back. This cartridge has 40% lower effective moving mass than our other moving iron designs meaning it’s easier to control. As a result, the stylus can stay in better contact with the groove walls. The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems. Every cartridge in Soundsmith’s lineup will now feature our sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and “boxy” design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely effecting performance. Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tone arm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls — a critically important technical refinement. Increased liquidity and reduced “grain,” without loss of detail are some of the immediately discernible advantages of Soundsmith’s new ES models.



Specifications:

Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Contact Line, Nude, 0.10 mm square Selected
Radius of Curvature: Optimized Contour Contact Line
Cantilever: Ruby
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance)
1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: 0.30 mg
Compliance: 22 µm/mN (Medium Compliance)
28 µm/mN (High Compliance)
Frequence Response: 20 - 20,000 Hz ± 1.0 dB
Channel Separation
@ 1000 Hz:
> 30 dB
N/A (Mono version)
Channel Separation
@ 50 - 15,000 Hz:
> 30 dB
N/A (Mono version)
Channel Difference: < 20 dB
< 0.5 dB (Dual Mono w/optimal VTF setting)
Output Voltage
@ 5cm/sec:
> 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 9.20 g (ES series)
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
