Violectric

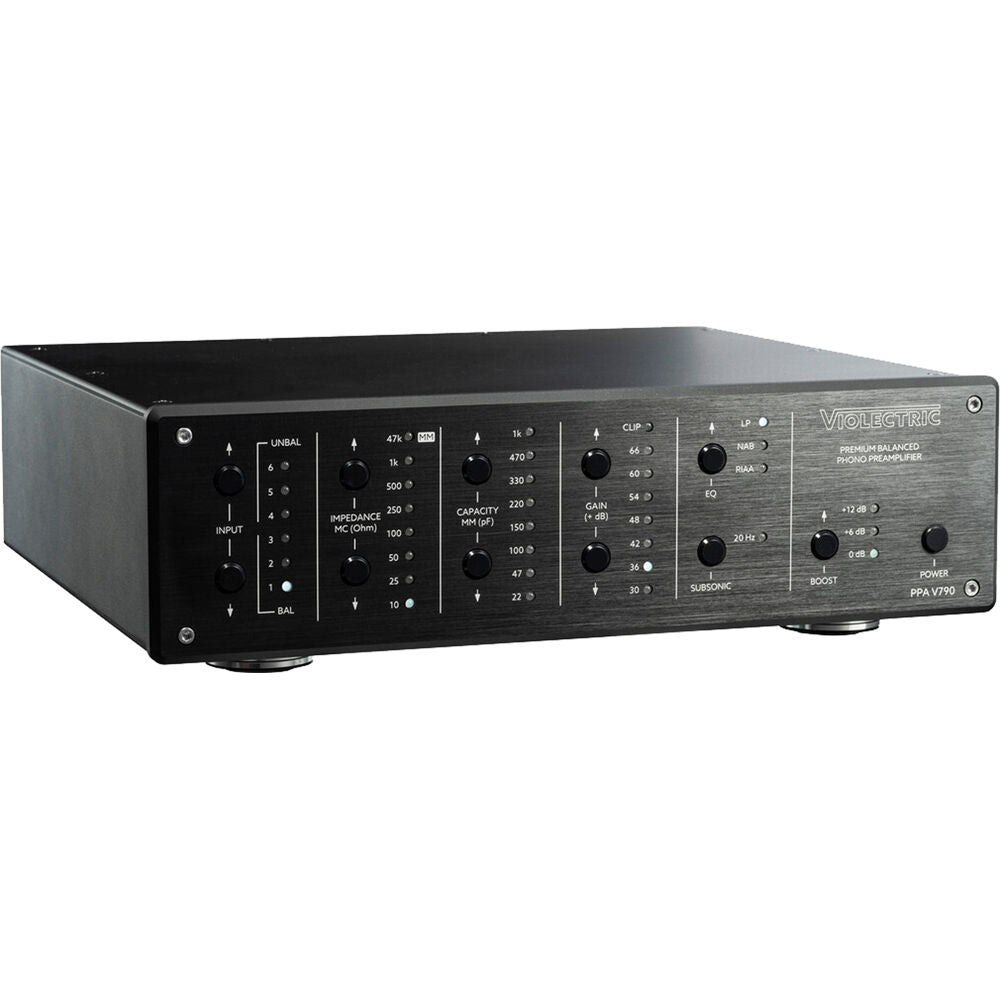

Violectric PPA V790 Phono Stage

Violectric PPA V790 Phono Stage

Regular price $7,699.00
Regular price Sale price $7,699.00
Sale Featured Sold out
Free Express Shipping In Canada

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Usually ships within a few days.





Violectric's PPA V790 phono stage is a state-of-the-art phono preamplifier with absolute unsuspected features until now. It offers a huge variety of adjustments, easily accessible from the front panel and a newly developed extremely low-noise and distortion-less amplifier technology. Because of its multiple inputs, up to six differing cartridges may be managed in only one amp and individually treated in terms of impedance, capacity, gain and EQ.



Features:

  • up to six differing cartridges
  • huge variety of adjustments
  • set individually
  • Made in Germany
  • 3 balanced stereo cartridge inputs via XLR
  • 3 unbalanced stereo cartridge inputs via RCA
  • 7 selectable impedances from 10 to 1000 Ohm (for MC cartridges)
  • 8 selectable capacities from 22 to 1000 pF (for MM cartridges)
  • 7 gain steps from +30 to +66 dB
  • Clip indication to visualize incorrect operation
  • 3 EQ filters RIAA, NAB, Columbia-LP
  • switchable Subsonic Filter 20 Hz
  • triple boost circuitry to perfectly adapt the amp into existing equipment
  • Obviously all individual adjustments are stored



Specifications:

Form Factor
Desktop
Input Connectors
6 x Balanced XLR 3-Pin Female Input (3 Stereo Pairs)
6 x Unbalanced RCA Coaxial Female Input (3 Stereo Pairs)
Output Connectors
2 x Balanced XLR 3-Pin Male Output (1 Stereo Pair)
2 x Unbalanced RCA Coaxial Female Output (1 Stereo Pair)
EQ Controls
RIAA Curve (Selectable)
NAB Curve (Selectable)
LP-Columbia Curve (Selectable)
20 Hz Low-Cut Filter (Selectable)
Impedance
10 Ohms to 1 Kilohm (Switchable)
Capacitance
22 to 1000 pF (Switchable)
Gain Range
+30 to +66 dB
Gain Boost
0, +6, and +12 dB (Selectable)
Indicators & Controls
37 White LED Indicators
12 Push Buttons (Input Selection, Impedance, Capacitance, Gain Factor, Filter Selection, Gain Boost, Power)
Construction Material
Metal
Color
Black
