Description

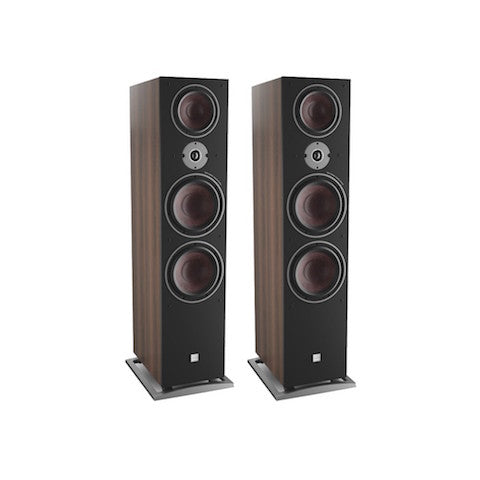

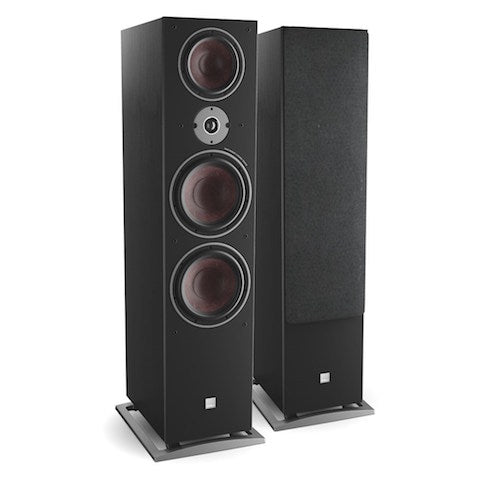

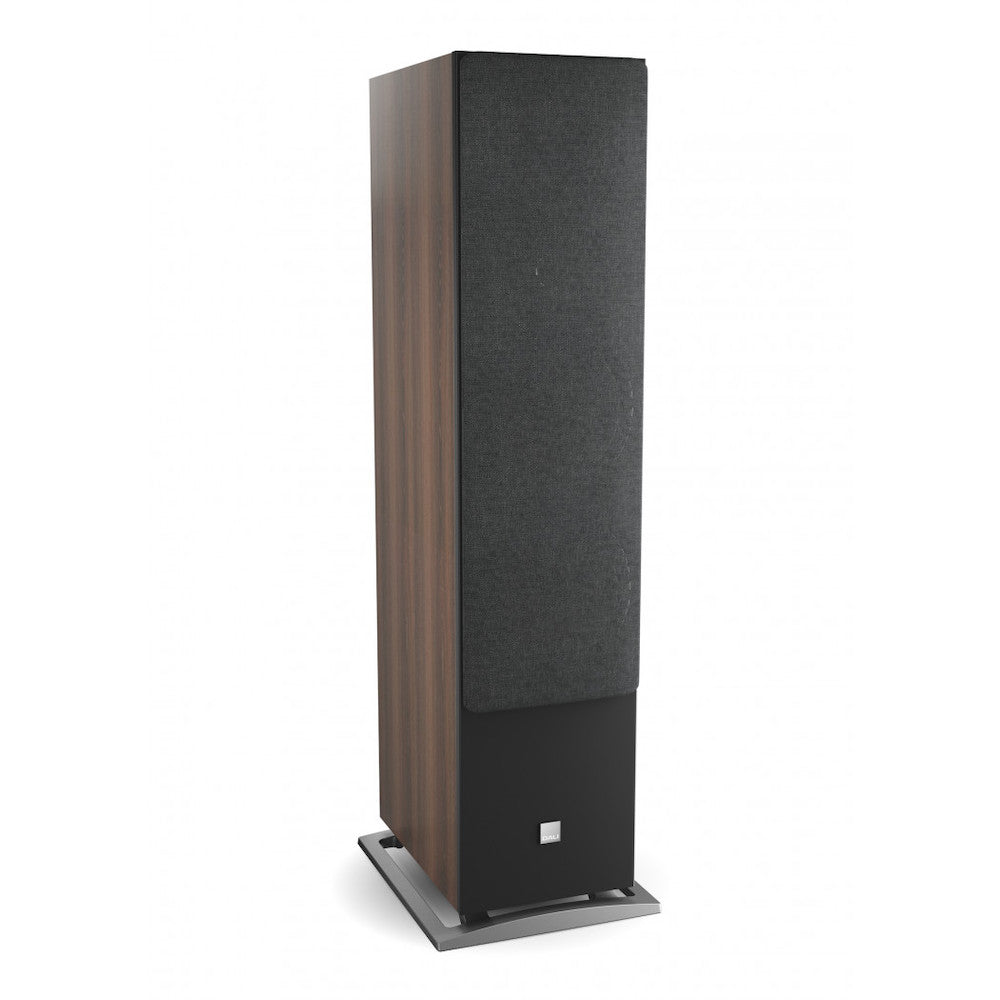

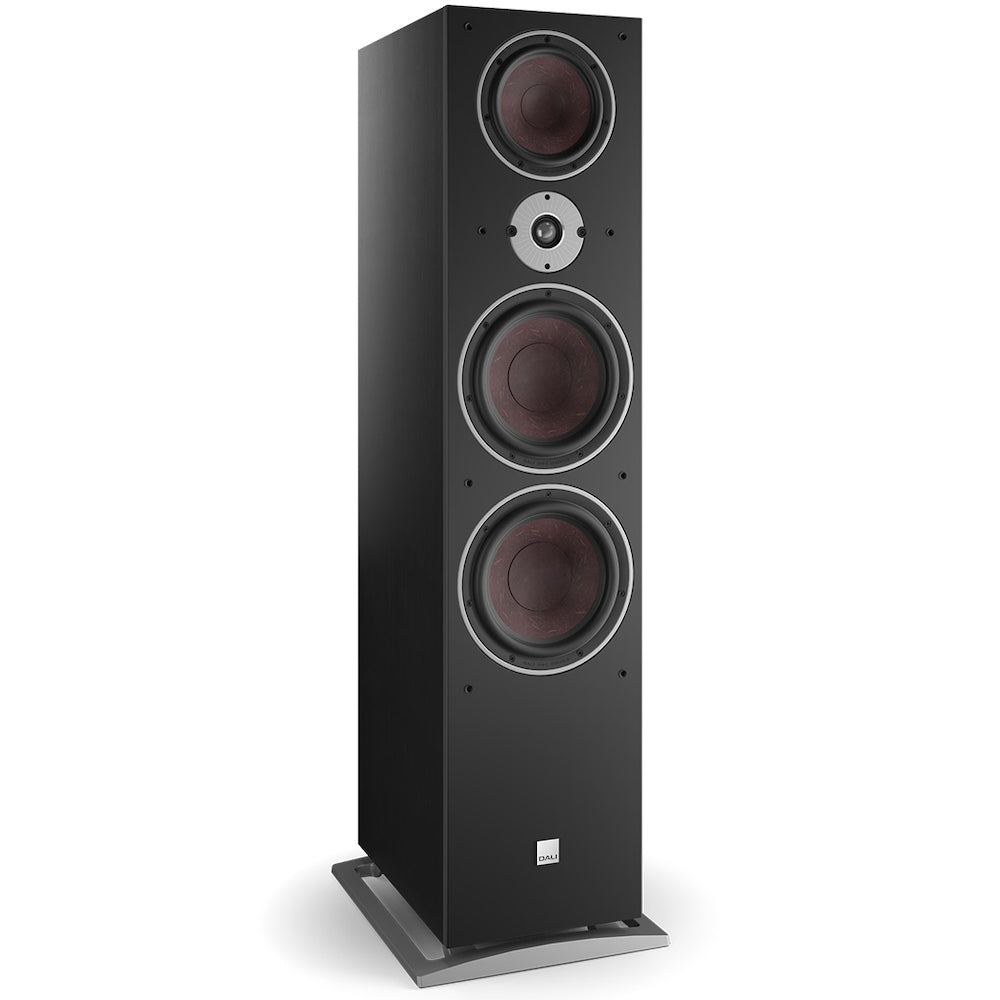

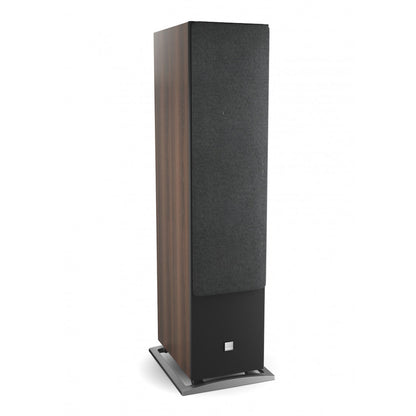

The OBERON 9 is two long-throw 9” woofers. It is a true 3-way high-end Hi-Fi speaker. This large floor-standing three-way OBERON 9 features one 7" and two 9” wood fibre woofers - all three based on SMC. Supported by an oversized 29 mm ultra-lightweight soft dome tweeter.
Despite its site, it is easy to integrate the OBERON 9 into any room. Both the driver materials and geometry applied in the speaker has been selected to achieve a wide dispersion pattern in the listening area.
Specifications:
Product series | OBERON |
---|---|
Frequency Range (+/-3 dB) [Hz] | 35 - 26,000 |
Nominal Impedance [ohms] | 4 |
Maximum SPL [dB] | 113 |
Recommended Amplifier Power [W] | 50 - 400 |
Crossover Frequency [Hz] | 780/3,400 |
Crossover Principle | 3-way |
High frequency driver, Quantity | 1 x 29 mm |
High frequency driver, Diaphragm type | Soft Textile Dome |
Midrange driver, Quantity | 1 x 7" |
Midrange driver, Diaphragm type | Wood Fibre Cone |
Low frequency driver, Quantity | 2 X 9" |
Low frequency driver, Diaphragm type | Wood Fibre Cone |

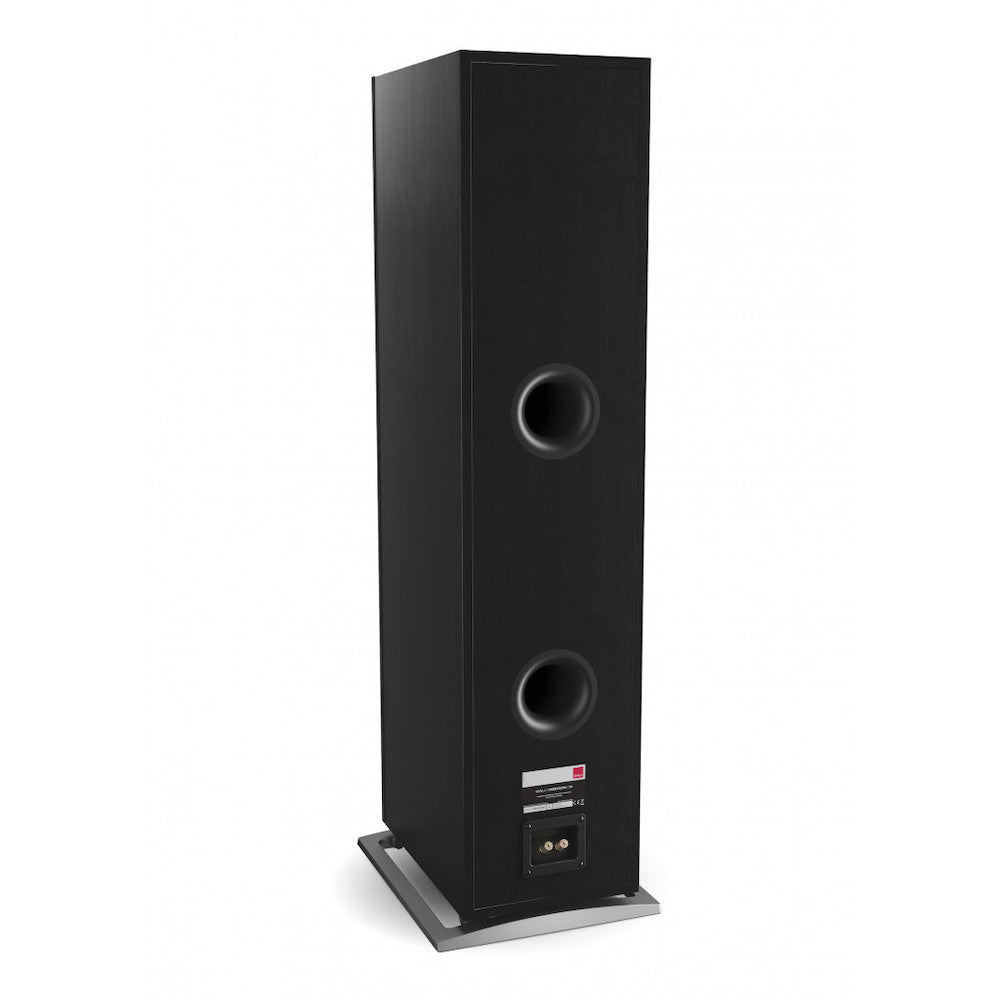

Enclosure type | Bass Reflex |
Bass Reflex Tuning Frequency [Hz] | 31 |
Connection Input | Single Wire |
Recommended Placement | Floor |
Recommended Distance From Wall [cm] | 20 - 80 |
Accessories Included | Manual Rubber Feet Spikes Front Grille |
