JL Audio Fathom f110v2 Subwoofer
JL Audio Fathom f110v2 Subwoofer
JL Audio does not permit this product to be ordered via an online shopping cart. Please contact us by phone or email for more information or to order. Thank you.
Couldn't load pickup availability
Lighting fast delivery in Canada
Canadian Warranty
Customer Experience
Description

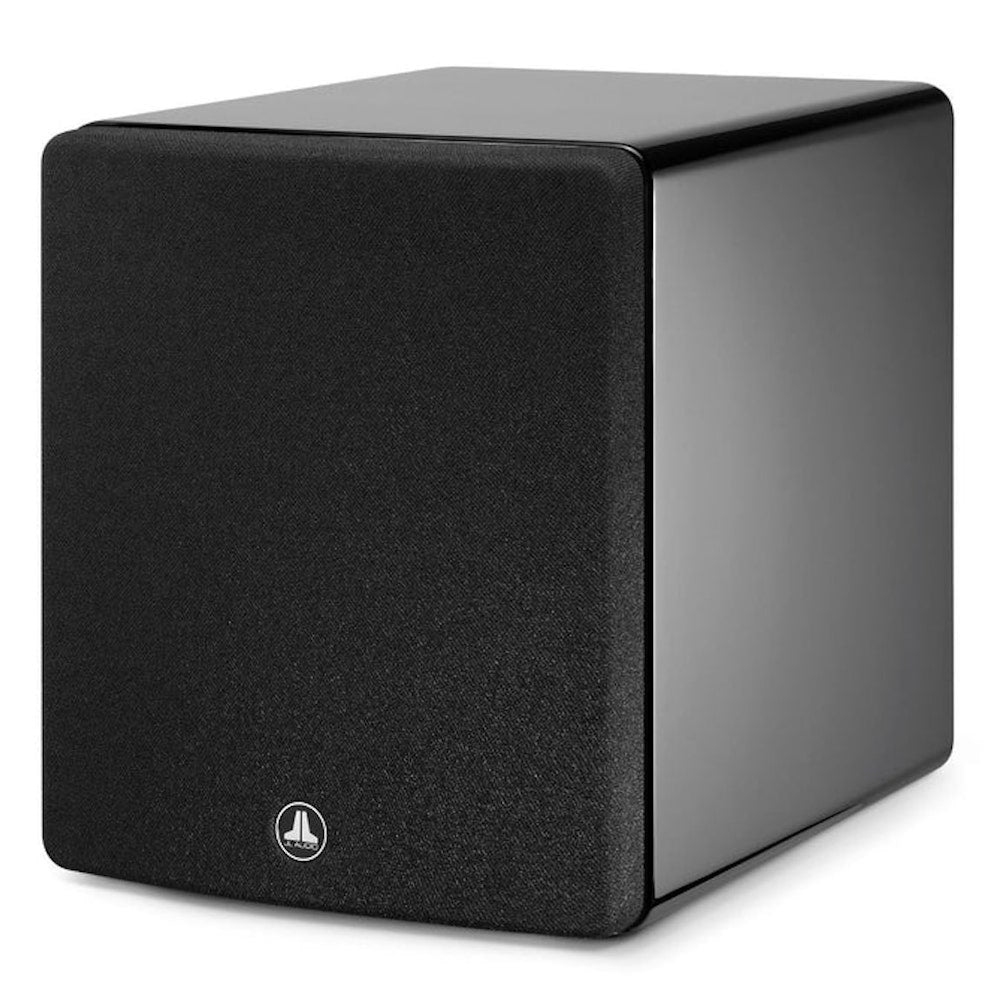

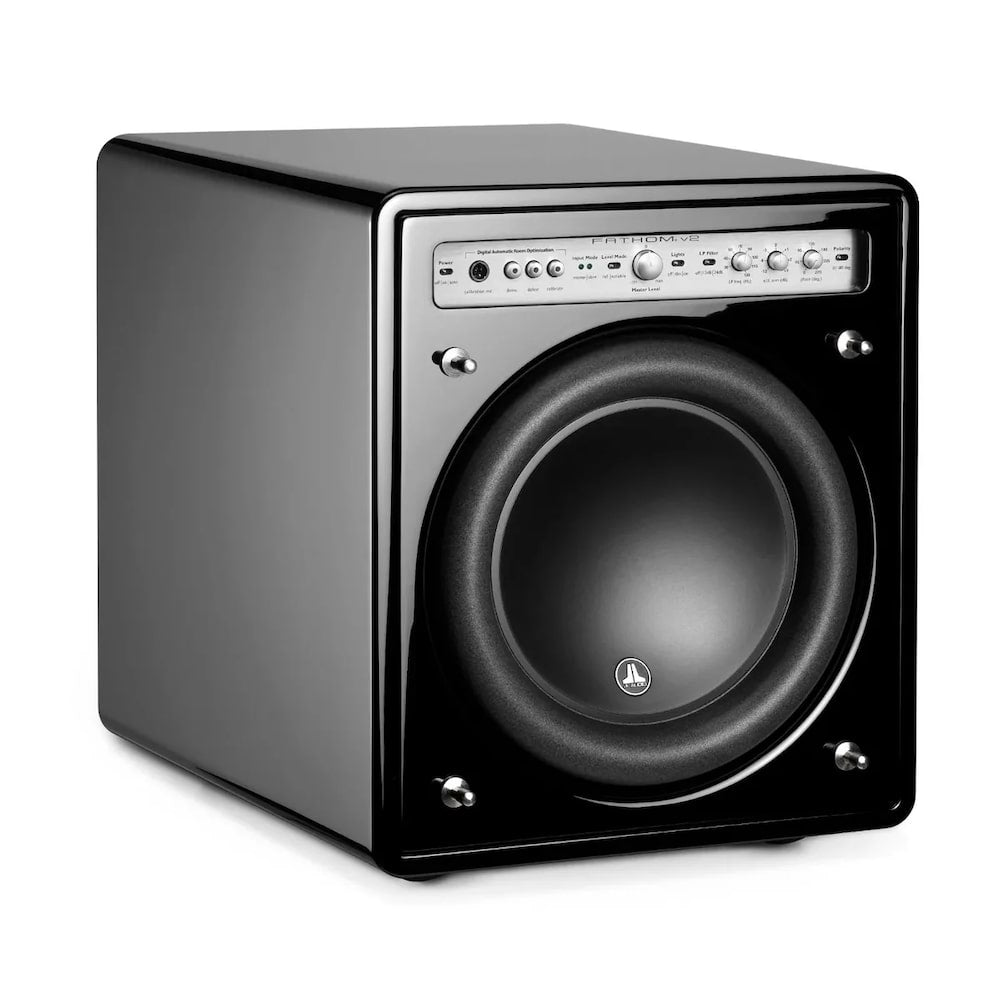

The JL Audio Fathom f110 Subwoofer is the most compact subwoofer in the Fathom lineup. However, it is fully capable of delivering stellar performance in smaller spaces. This subwoofer combines an ultra-long throw W7 10-inch driver and a very powerful switching amplifier to give it the kind of output normally associated with far larger subwoofer systems. The JL Audio Fathom f110 Subwoofer is built with the same driver and amplifier technology as our flagship Gotham®, so the f110v2 delivers a tremendous level of sound quality. Low distortion, excellent dynamic capabilities and shockingly deep bass extension will allow you to experience all the excitement of the most demanding cinematic material, while also being able to reproduce all the nuance and texture of your most delicate musical material.
Specifications:

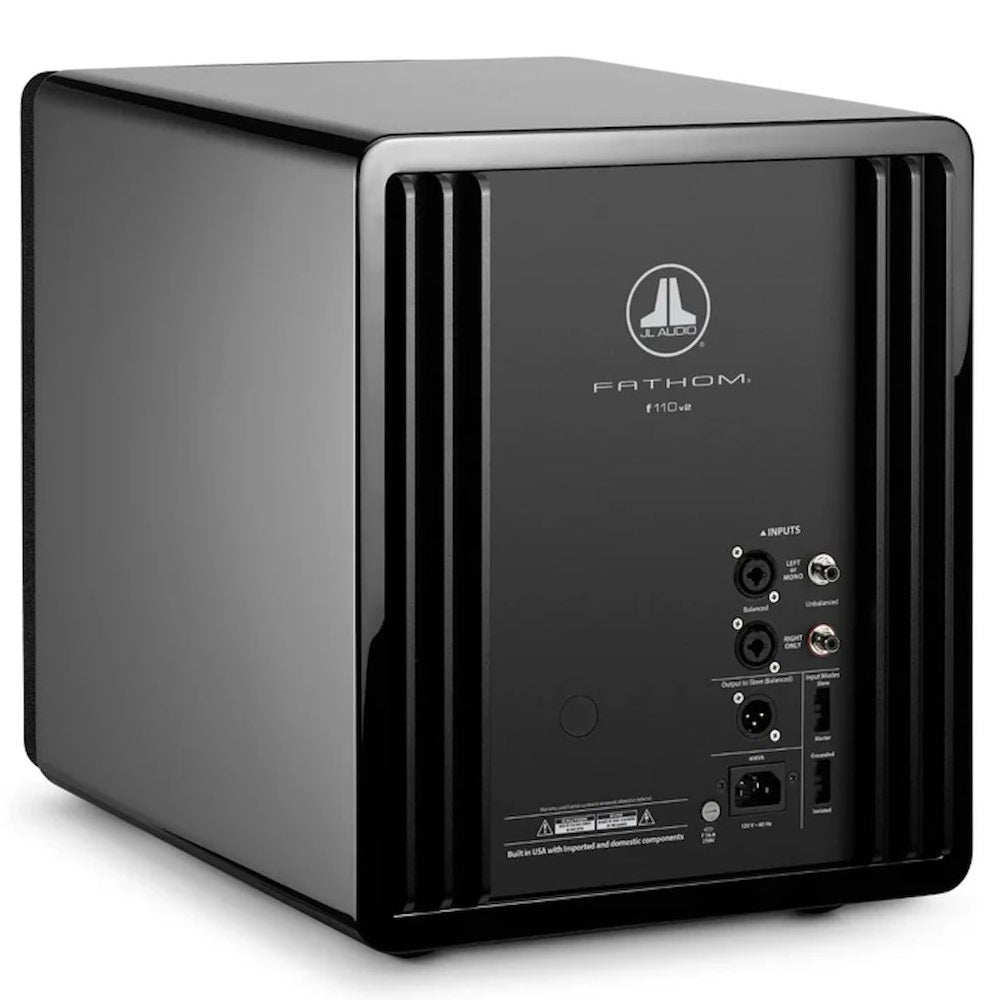

| Unbalanced Inputs | Stereo or Mono (two RCA jacks) |
| Balanced Inputs | Stereo or Mono (two female XLR jacks) |
| Speaker/High-Level Inputs | N/A |
| Input Grounding | Isolated or Grounded |
| Input Modes | Master or Slave |
| Level Control | Reference (fixed gain) or Variable, from full mute to +15dB over reference gain |
| Filter Mode(s) | Low-Pass |
| Filter Slope(s) | 12/24 dB/octave |
| Filter Frequency Range | 30 Hz - 130 Hz |
| Filter Defeat Function | Yes |
| Polarity | 0 or 180 degrees |
| Phase | Variable, 0 - 280 degrees |
| Extreme Low Frequency (E.L.F.) Trim | Variable, -12 dB to +3 dB at 28 Hz |
| Line Outputs | N/A |
| Output to Slave | Balanced (one male XLR jack) |
| Calibration Mode | Digital Automatic Room Optimization (D.A.R.O.), incudes laboratory-grade microphone |
| Effective Piston Area (Sd) | 60 sq in / 0.0387 sq m |
| Effective Displacement | 160 cu in / 2.6 L |
| Light Modes | Off, On or Dim |
