Exposure

Exposure XM3 Phono Stage

Exposure XM3 Phono Stage

Regular price $1,699.00
Regular price $1,199.00 Sale price $1,699.00
Sale Sold out
Free Express Shipping In Canada
Color

Free Express Shipping In Canada

Canadian Warranty

Professional Customer Experience

View full details

Description

Features:
  1. All discrete transistor audio stages
  2. Multiple power supply capacitors in parallel for low ESR
  3. Large 200VA custom made toroidal transformer for power supply
  4. High quality resistors & capacitors used in the signal path

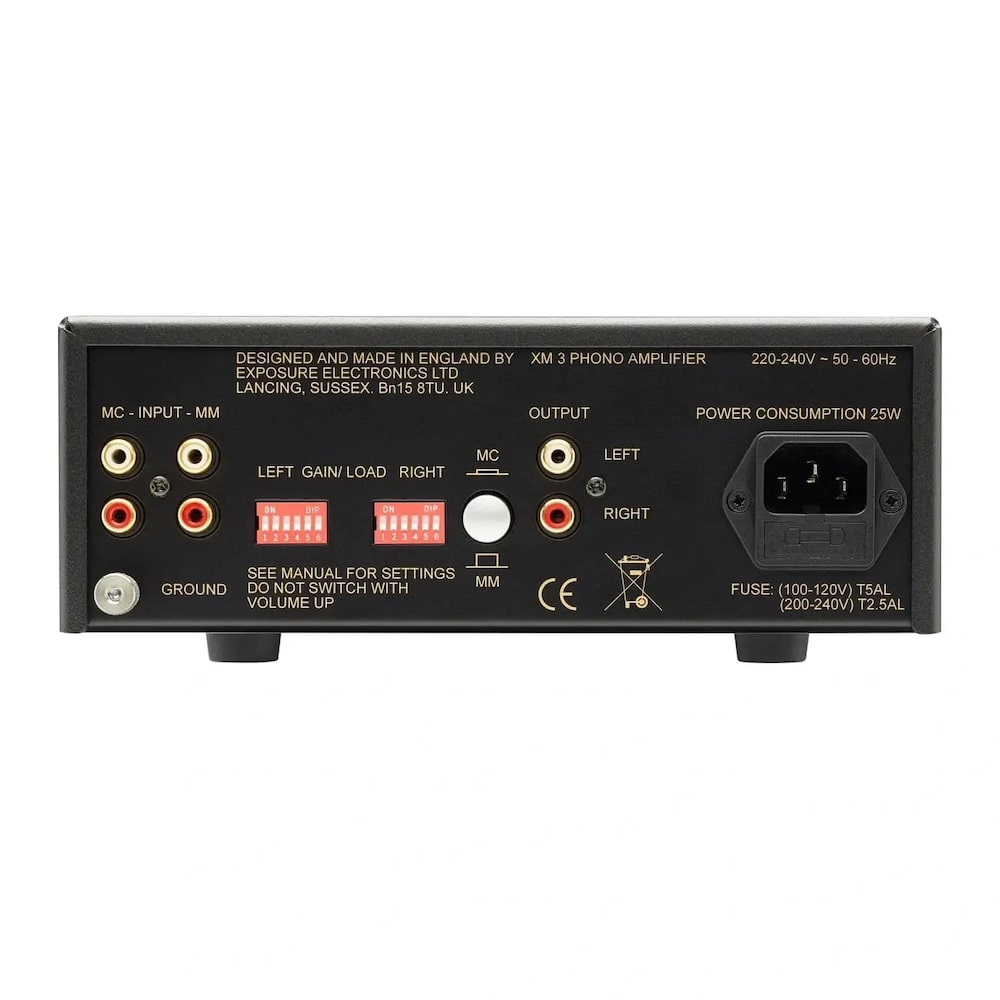

  5. Separate MM & MC inputs selectable on the back panel
  6. Adjustable loading & gain switches on the back panel
  7. High quality all aluminium case work and extruded front panel
  8. Three year guarantee
  9. Available in black or titanium
Specifications:
  • Moving Magnet Input

    • Sensitivity : 3.5mV input for 350mV output, 40dB gain setting
    • Signal to Noise ratio, ref 1KHz & 350mV out :
      • Gain Switch 4 ON : >70dB
      • Gain Switch 4 OFF : >78dB

    Moving Coil Input

    • Sensitivity : 350uV input for 350mV output, 60dB gain setting
    • Signal to Noise ratio, ref 1KHz & 350mV out : >67db A weighted. ALL gain switches (4-6)

    General Specifications

    • Frequency Response : 30Hz - 20Hz within +/- 0.25dB ref 1KHz with low frequency roll off below 30Hz
    • Total Harmonic @ 1KHz, ref 350mV out <0.025% MC Input :
      • Maximum Ouput Voltage : 7.8V RMS 1KHz
      • Output Impedance : 50 ohms
    • Mains Supply : 110/120V or 220/240V @ 50/60Hz (factory set)
    • Power Consumption : <25W
    • Dimensions (WxHxD) : 218mm x 89mm x 348mm
    • Net Weight (unpacked) : 4kg
    • Gross Weight (packed) : 5kg
