Description
NO LONGER AVAILABLE.
The F1 Series is the pinnacle of Fyne Audio’s audio experience and engineering expertise using the most advanced point-source driver technology. This series represents state of the art UK hi-fi loudspeaker design. All at the Fyne Audio headquarters in Glasgow, the F1 Series is designed, manufactured, hand-finished and tested.

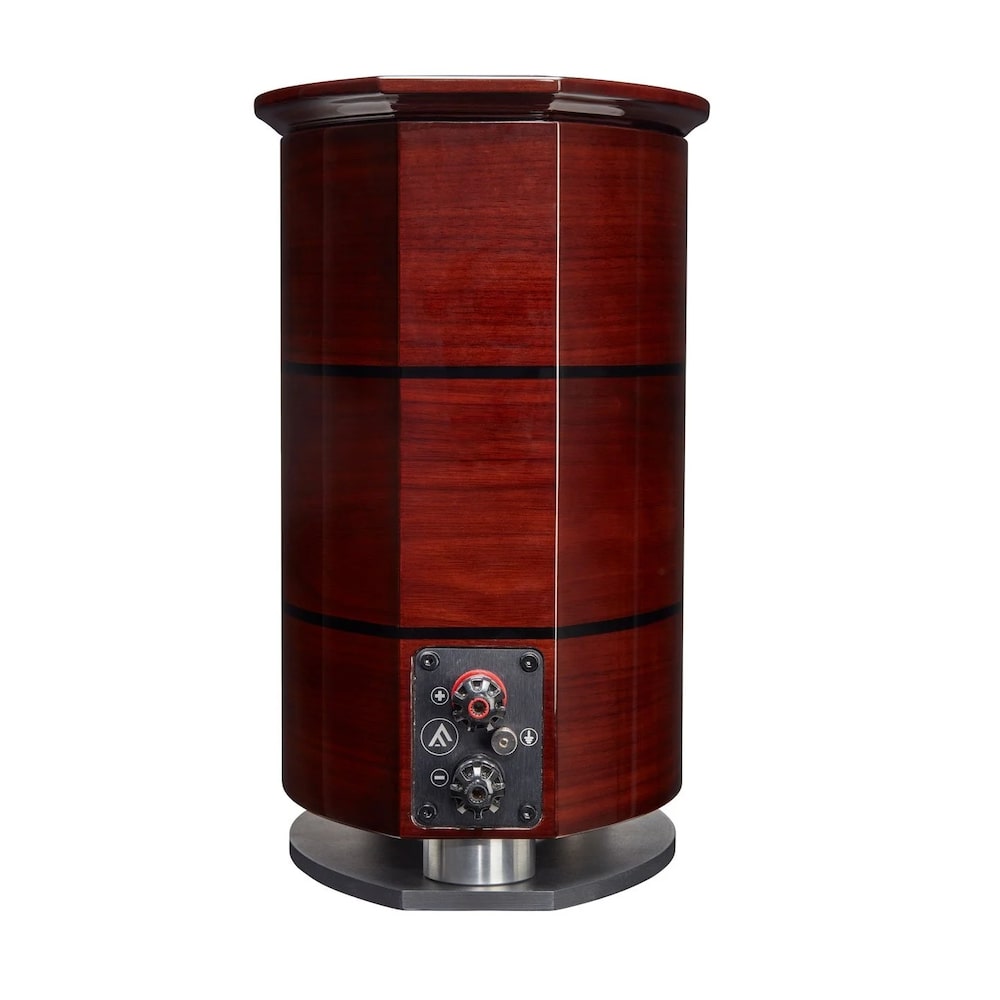

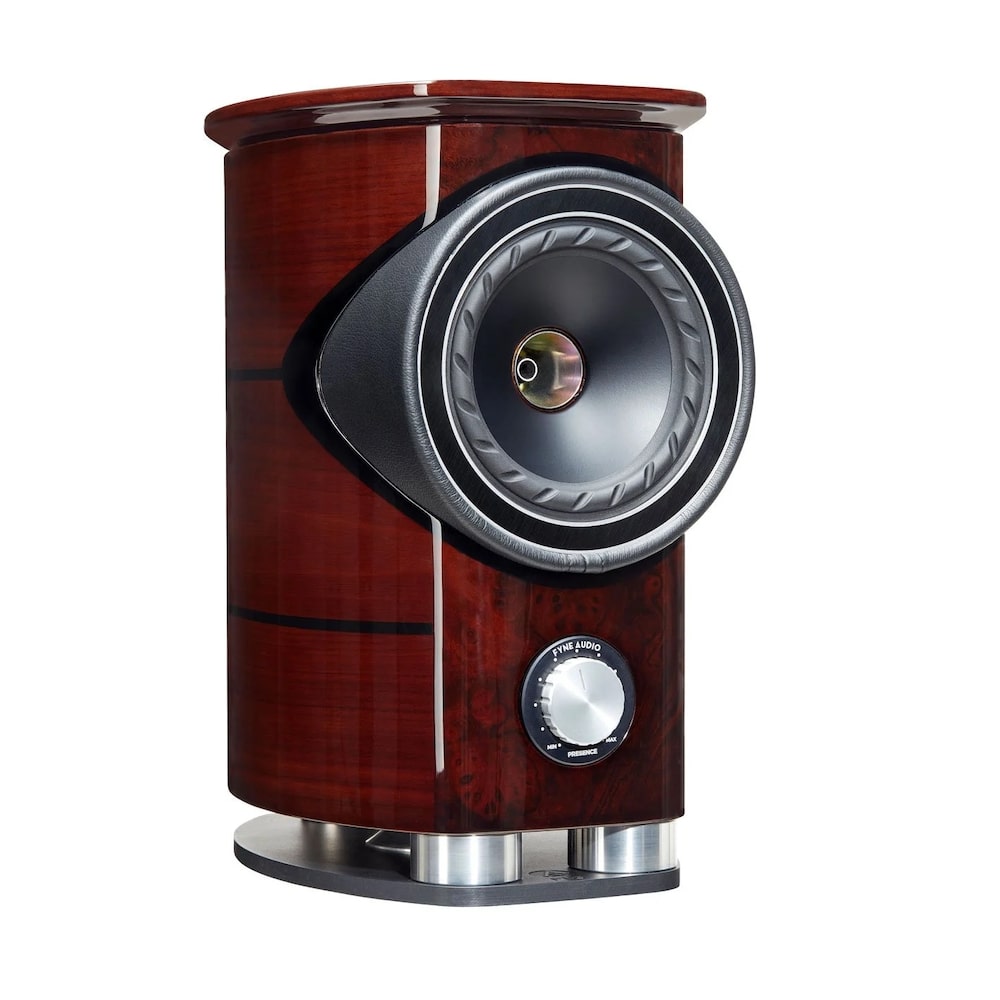

The F1-5 has a hand crafted cabinet that is supported on a machined aluminum plinth which houses Fyne Audio's BassTrax LF diffuser. This speaker uses the same technology as the larger F1-8 but in a near bookshelf speaker design. This speaker also features a 125mm IsoFlare low frequency driver mated to a 19 mm magnesium dome compression tweeter that is surrounded by FyneFlute rubber surround. This creates a point source, time aligned transducer delivering pure isotropic radiation across the entire audio spectrum. Hand finished in the UK with a walnut veneer and burr walnut inlay. The Fyne Audio F1-5 is the pinnacle of UK Hi-Fi loudspeaker design distilled into a sumptuous compact bookshelf speaker design.
F1-5 Specifications:
| System Type | 2 way, downwards firing port, with BassTrax Tractrix diffuser* |
| Recommended amplifier power (Watt RMS) | 30 - 100 |
| Peak power handling (Watt) | 200 |
| Continuous power handling (Watt RMS) | 50 |
| Sensitivity (2.83 Volt @ 1m) | 87dB |
| Nominal impedance | 8 Ohm |
| Frequency response (-6dB typical in room) | 48Hz - 38kHz |
| Drive unit complement | 1 x 125mm IsoFlare point source driver, multi-fibre bass/ midrange cone, FyneFlute surround with 19mm magnesium dome compression tweeter, neodymium magnet system |
| Crossover frequency | 1.9kHz |
| Crossover type | Single wired passive low loss, 2nd order low pass, 1st order high pass. Deep Cryogenically Treated |
| System adjustments | Presence (2.5kHz - 5.0kHz) +/- 3dB |
| Dimensions - HxWxD | 321 x 186 x 289mm (12.6 x 7.3 x 11.4”) |
| Net Weight - Each | 5.7kg (12.6lbs) |
| Finishes | Piano Gloss Walnut |

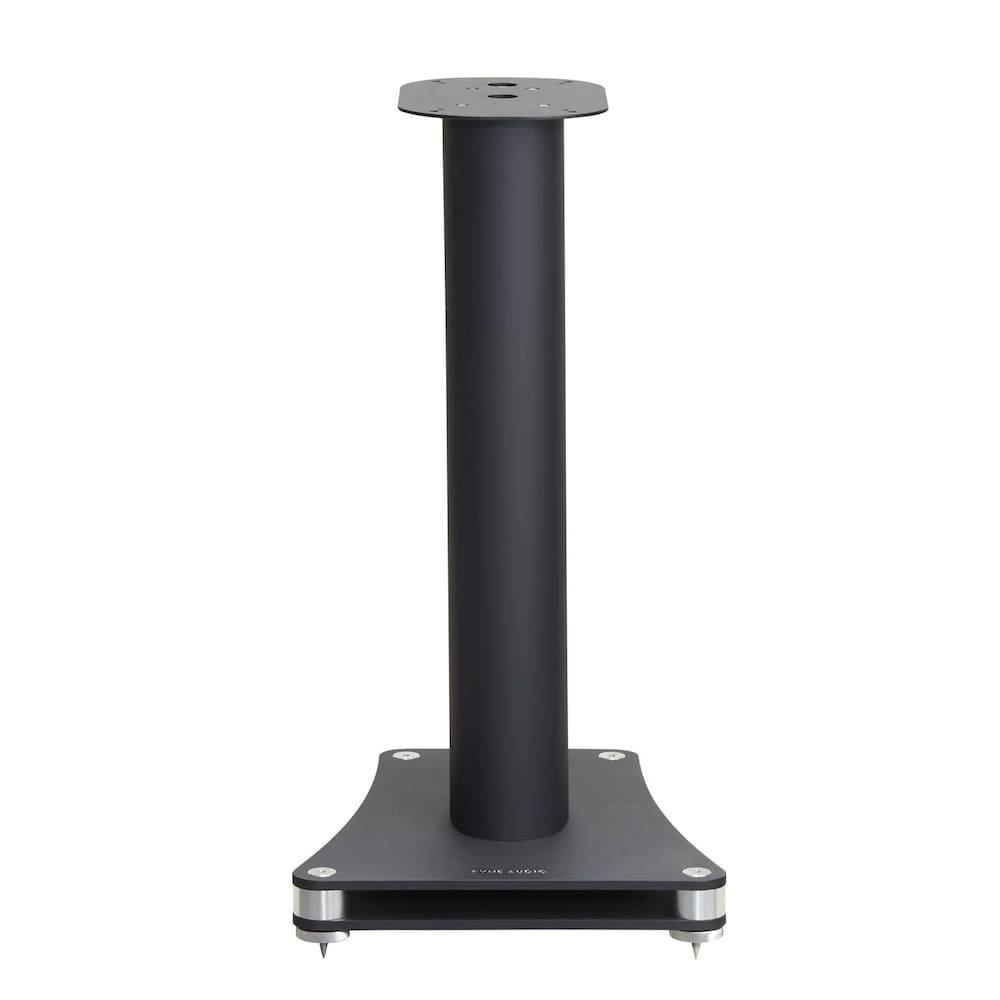

FS8 Specifications:
| Stand Height - excluding spikes | 644mm (25.4”) |
| Stand Top Plate Dimensions | 250mm x 160mm (9.8 x 6.3”) |
| Base Plate Dimensions - WxD | 348mm x 400mm (13.7 x 15.7”) |
| Net Weight - Each | 9.8kg (21.6lbs) |
