Rogue Audio DragoN Amplifier
Rogue Audio DragoN Amplifier
Usually Ships Within A Few Days.
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
NO LONGER AVAILABLE.
The Rogue Audio DragoN Amplifier combines the best of both the solid state and tube technologies. An energy efficient "green" design requiring no tube biasing or regular maintenance. An amplifier having the smooth and organic sound that only tubes can provide combined with the dynamics and slam of the solid state. These new amplifiers are much more than simply a tube circuit placed in front of a class D output section. Our proprietary tubeD™ circuit topology actually integrates the tube section into the amplifier yielding the smooth natural sound that only a tube amp can provide. With almost uncanny accuracy the Dragon and Hydra amps deliver stunning dynamics and transparency without any of the edgy, etched or grainy sound that often accompanies solid state designs. A low power standby mode allows critical amplifier sections to remain continuously powered on (if desired) and a slow start feature allows the tubes to warm up gradually to eliminate turn-on noise and greatly extend tube life. Three massive linear power supplies are used to power the amplifier circuitry and ultra-high quality parts are used exclusively throughout the design. Combined with a stunning appearance, you can be certain that you are investing in an amplifier that truly represents the very leading edge of audio technology. Entirely designed and built in the USA.
DragoN Amplifier:
| Features | Specifications |
|
Proprietary tubeD™ circuit topology NCore Hypex modules Massive linear power supplies Output power: 300 WPC at 8 Ohms, 600 WPC at 8 Ohms Balanced (XLR) and single ended (RCA) inputs Heavy-duty gold plated binding posts Two 12AU7 tube complement Short circuit protection Standby circuitry for solid state components Slow start circuit for extended tube life Machined aluminum faceplate All precision components Heavy (2 ounce) copper circuit board Fully tested, burned in, and auditioned 3-year limited warranty (6 months on tubes) |
Output power: 300 WPC at 8 Ohms, 500 WPC at 4 Ohms Input impedance: 200K Ohms Frequency response: 10Hz - 20KHz ± 1dB THD: <0.1% typ., <1.0% at rated power Input sensitivity: 1.0V RMS Dimensions: 18" W x 15" D x 5.5" H Weight: 38 lbs |

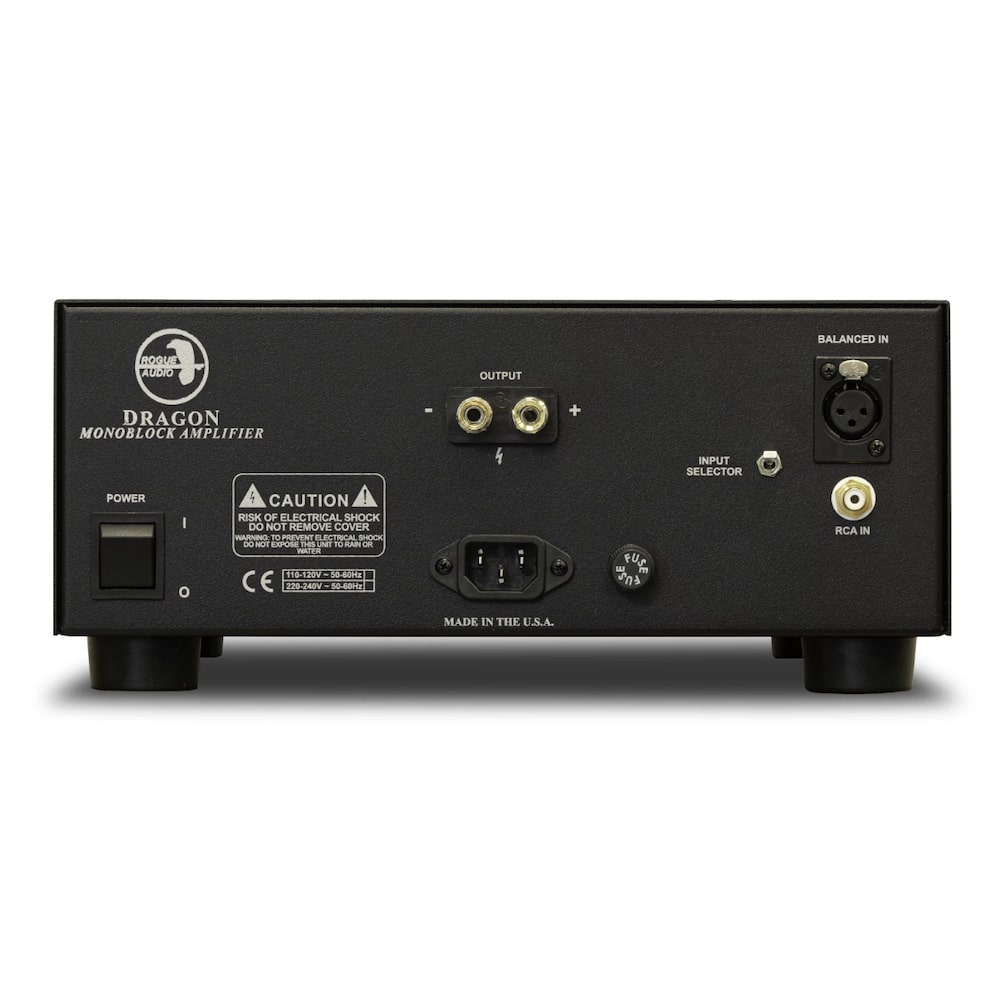

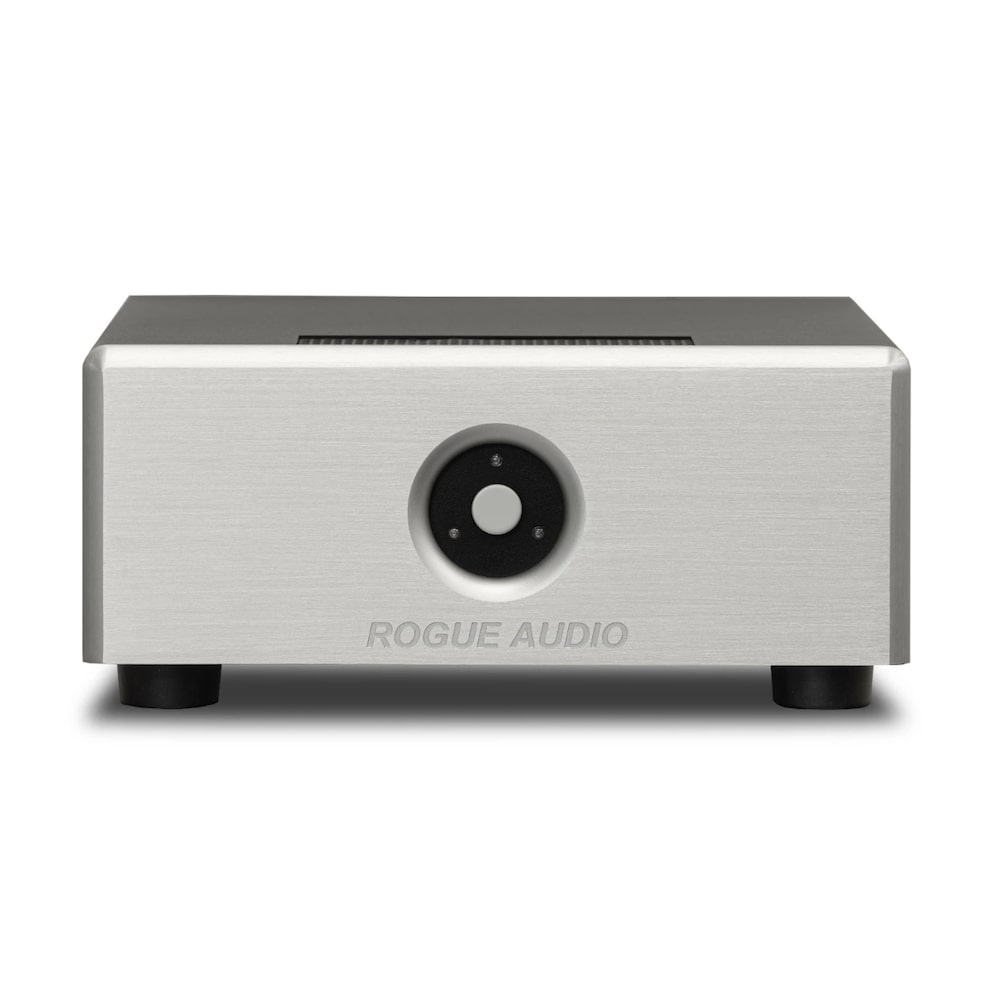

DragoN MonoBlocks:
| Features | Specifications |
|
NCore Hypex Modules Massive high storage power supply True balanced and single ended inputs Heavy-duty gold plated XLR and RCA inputs (2) 12AU7 tubes Short circuit protection Standby circuit for solid state components Slow start circuit for extended tube life 1/2" machined and engraved faceplate Heavy-duty gold plated binding posts All precision components Heavy (2 ounce) copper circuit board Machined aluminum faceplate Matched pairs of signal tubes Fully tested, burned-in, and auditioned 3 year limited warranty (6 months on tubes) |
Output power: 325W @ 8 Ohms, 525W @ 4 Ohms Frequency response: 20Hz - 20KHz ± 1dB THD: <0.1% typ., <1% at rated power Input sensitivity: .75V RMS Input impedance: 30K Ohms Dimensions: 12½"W x 5.5"H x 19"D Weight: 33lbs. ea. Power requirements: 120/240V - 50/60Hz |
