Soundsmith

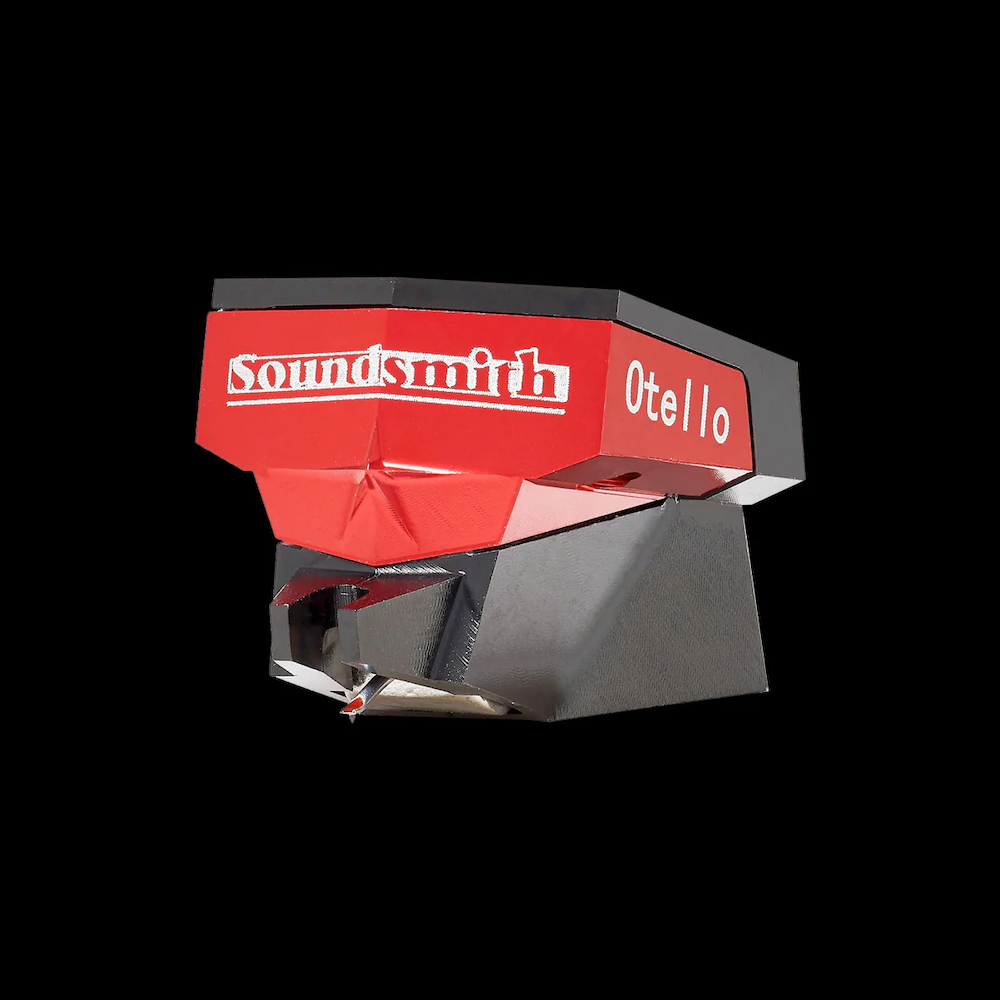

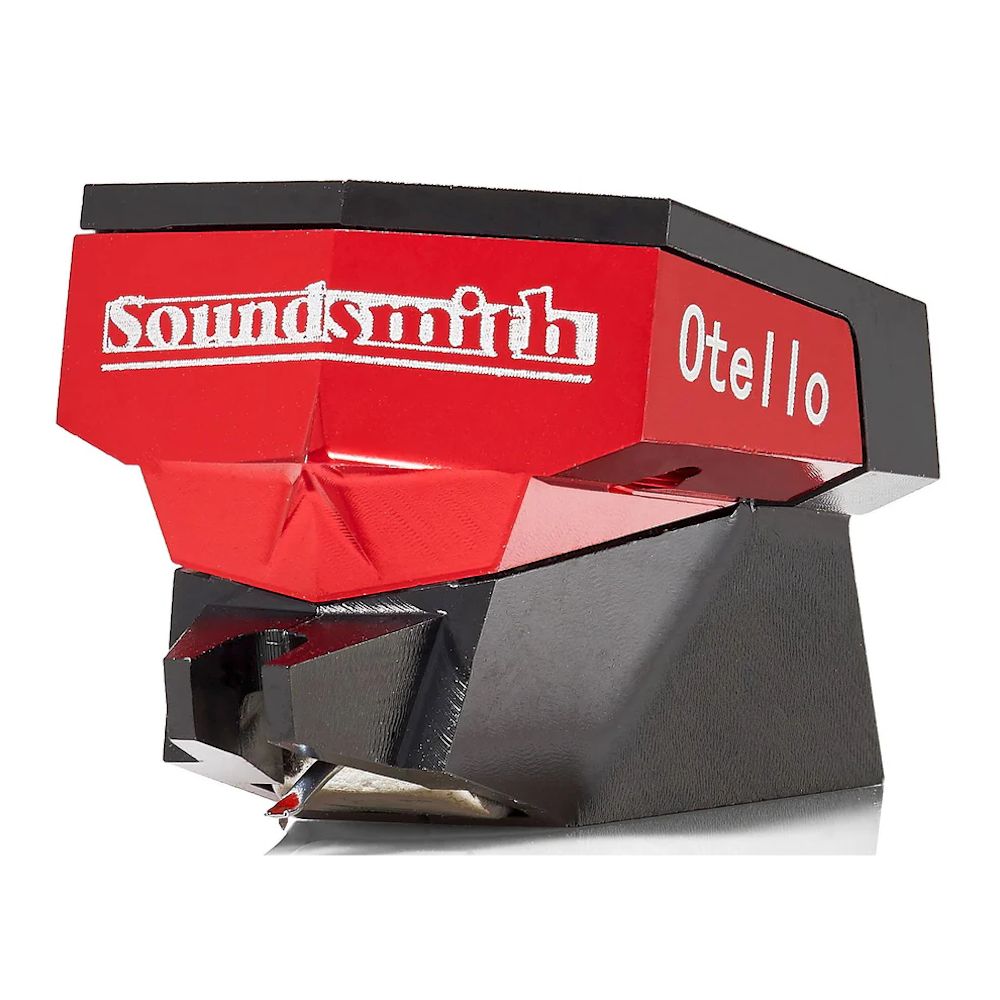

Soundsmith Otello ES High Output Cartridge

Soundsmith Otello ES High Output Cartridge

Regular price $809.93
Regular price Sale price $809.93
Sale Featured Sold out
Shipping calculated at checkout.
Otello

Lighting fast delivery in Canada

Canadian Warranty

Customer Experience

View full details

Description


No Discounts Possible.

Affirm Cannot Be Used.



Usually Ships Within 1-2 weeks.





Soundsmith's Otello cartridge is an entry-level fixed coil design - an affordable pathway into the world of high-performance cartridges. This cartridge is built by hand and provides a balance of resolution and tone resulting in a cartridge that is at ease with any type of music. Just slightly warmer than other Soundsmith designs, Otello yields a richness of timbre that is utterly beguiling with a level of speed and dynamic range that no other cartridge in this price. This results in a wonderful design that gives the warmth of MM and the light-footedness of Moving Iron design.

The ES line features not only a dramatic new look, but is a significant evolution of the DEMS system design (Dynamic Energy Management System). The new Soundsmith ES cartridge designs are a significant advancement in cartridge performance due to their ability to direct internal vibrational forces without reflection and disperse them properly to the tonearm. The absence of reflections enables the stylus to stay in far greater statistical contact with the groove walls — a critically important technical refinement. Increased liquidity and reduced “grain,” without loss of detail are some of the immediately discernible advantages of Soundsmith’s new ES models.

The new line also features Azimuth adjustment built-in to each cartridge, as well as the option for electrical isolation for hum-prone systems. Every cartridge in Soundsmith’s lineup will now feature its sleek new ES body design. The upgrade is far more than cosmetic; the new shape is a departure from the reflective and “boxy” design of many cartridges whose internal construction contribute to uncontrolled vibrational issues adversely affecting performance. Soundsmith has always challenged conventions, looking deeper into nuances of cartridge design that dramatically affect immediate and long-term performance. These have included extreme reductions of moving mass and the use of novel materials and designs. The new ES lineup is a continuation of that research and development.



Specifications:

Type: Fixed Coil / Moving Iron
Mount: Standard ½”
Stylus: Elliptical Titanium Bonded, 0.20 mm round
Radius of Curvature: 6 x 17 µm
Cantilever: Aluminum Alloy
Recommended Tracking Force: 1.3 - 1.6 g Standard (Medium Compliance)
1.0 - 1.2 g (Special Order High Compliance)
Effective Tip Mass: 0.50 mg
Compliance: 22 µm/mN (Medium Compliance)
28 µm/mN (High Compliance)
Frequence Response: 20 - 20,000 Hz ± 2.5 dB
Channel Separation
@ 1000 Hz:
> 24 dB
N/A (Mono version)
Channel Separation
@ 50 - 15,000 Hz:
> 20 dB
N/A (Mono version)
Channel Difference: < 1.8 dB
< 1.0 dB (Mono version)
Output Voltage
@ 5cm/sec:
> 2.12 mV (HIGH)
DC Resistance (DCR): 680Ω
Coil Inductance per channel: 190 mH
Suggested Preamp Gain: 38 - 44 dB
Cartridge Weight: 9.20 g (ES series)
Recommended Load Resistance: ≥ 47kΩ
Recommended Load Capacitance: n/a
