Description
The new Eversolo AMP-F2 has been developed in collaboration with the Starke Sound and Eversolo teams, is based on the innovative INS600 module created by the Starke Sound team in California. It boasts a high sampling rate of up to 600KHz.
Simultaneously, it significantly reduces noise and enhances dynamic performance through the newly designed SAPS audio-specific switch power supply. It employs an efficient Class D amplification structure, coupled with optimized circuits to maximize audio quality.
The AMP-F2 is bridgeable, allowing flexible configuration for 2-channel or mono-channel / multi channel setups.
The AMP-F2 is equipped with Starke Sound's NS600 amplifier module, each channel can output a constant 250W RMS (40) @ 1% THD+N.
When bridged to mono, it can support up to 450W RMS (22) with THD+N still below 1%.
This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.
Accurate Sound - Perfect Experience
The NS600 module employs PurePath™ Ultra-HD technology and advanced integrated feedback design, featuring high-speed gate driver error correction functions.
This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio quality.
Utilizing a 600W high-efficiency, low-ripple, low-EMI switch power supply, it delivers consistent and powerful output, extremely low noise, enhancing the overall dynamic performance of the system.

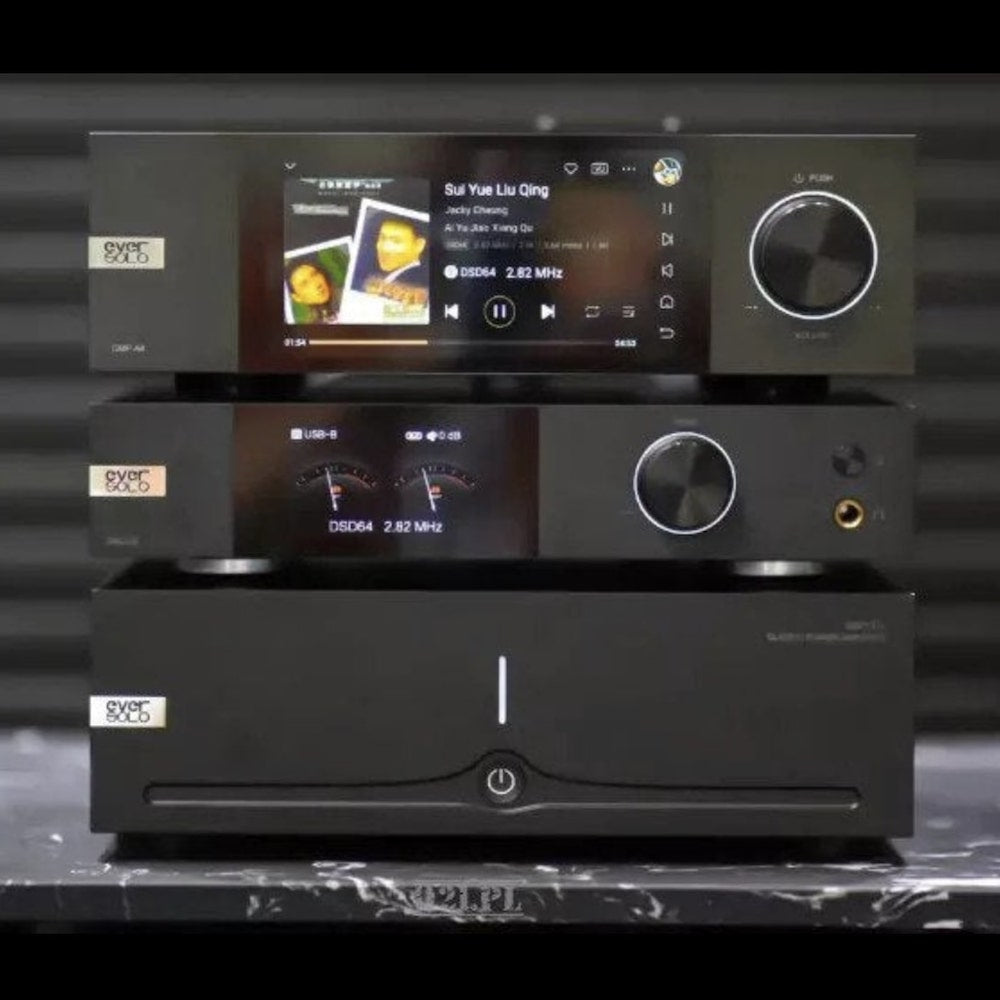

The AMP-F2 has also been developed to offer the perfect system combination with DMP-A6 and DMP-A8.
Environmentally Friendly Low Power Consumption
AMP-F2 has an extremely low standby power (0.5W) and idle power consumption (14W), complying with the European Union ErP standards.
Complete self-protection and anti-interference design to avoid disturbances from various electrical environments.
Specifications:
280W RMS at 4Ω（1%THD，per channel）130W RMS at 8Ω（1%THD，per channel）
Bridge Mode Output Power
450W RMS at 2Ω（Bridge Mode）
2 Channels - Stereo Mode
1 Channel - Bridge / Mono Mode
Class D
Maximum output current
16.5A（per channel）/ 33A（Bridge）
Signal-To-Noise Ratio（SNR）
>110dB,"A" weighted 4Ω 260W
Input terminals
2-Channel RCA Input ；2-ChannelXLR Input
Input Impedance
RCA 10.5K ohm /XLR 21.7K ohm
Output terminals
2 pairs beryllium copper binding post，custom made by Starke Sound
Output Impedance
0.09 ohm 1kHz
Damping coefficient
100
Specifications
