Cayin Jazz 90 Tube Integrated Amplifier COMING SOON
Cayin Jazz 90 Tube Integrated Amplifier COMING SOON
Couldn't load pickup availability
Lighting fast delivery in Canada
Canadian Warranty
Customer Experience
Description
Pre-Order. Initial Stock Due In Mid July Or So. Please Pre-Order To Obtain One From The First Shipment. Thank You.

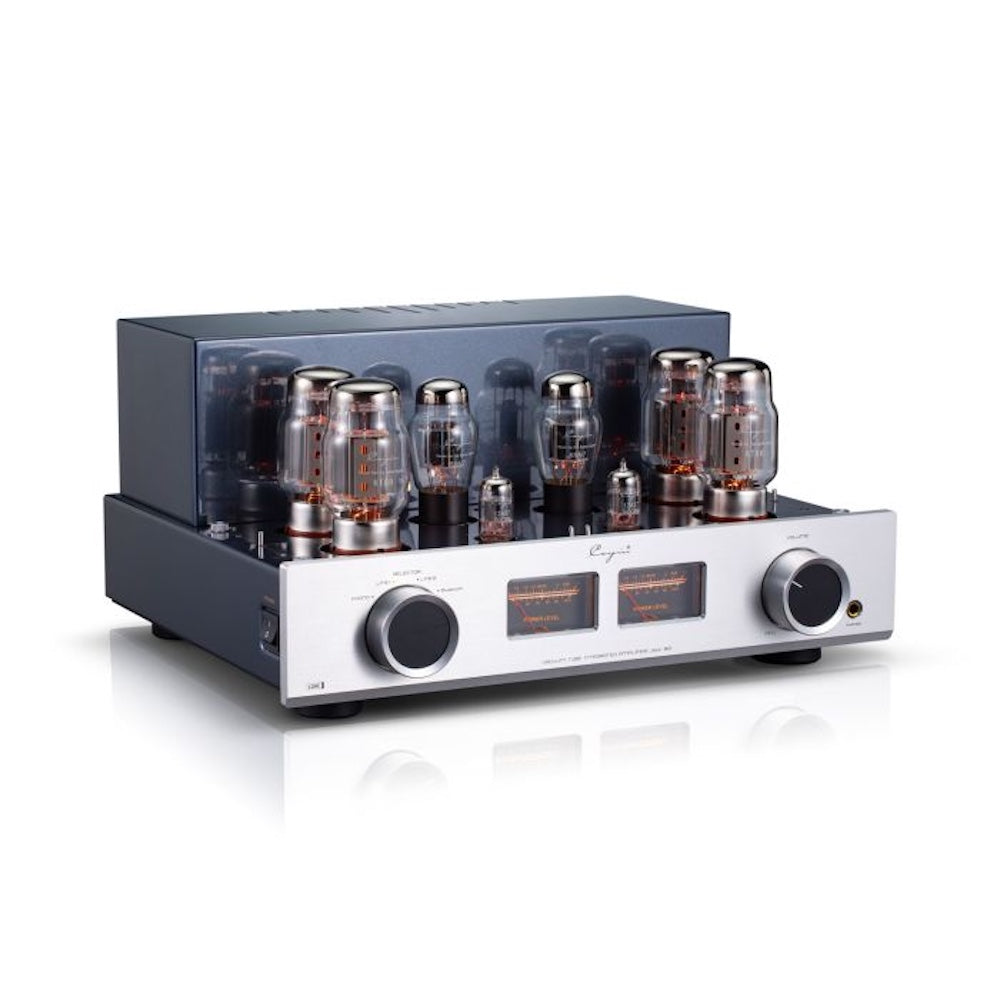

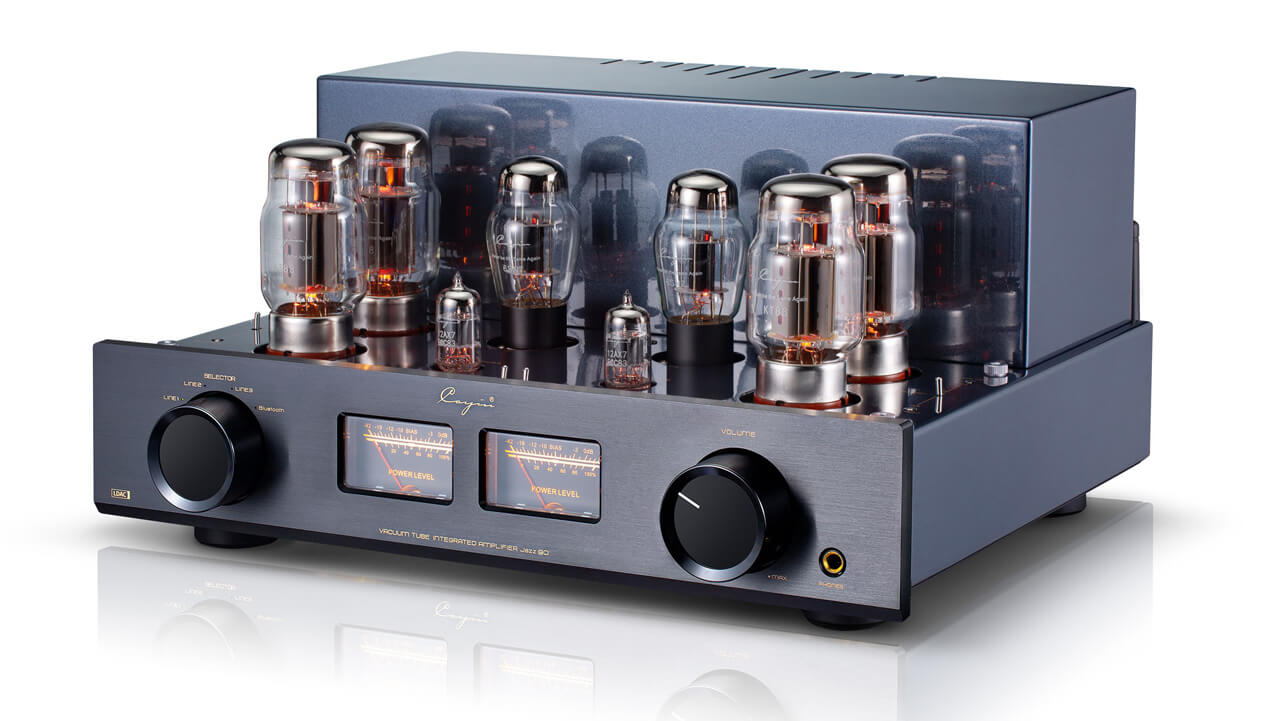

The Cayin Jazz 90 represents a new generation of modern integrated tube amplifier design with elegant aesthetics and advanced features. Featuring an architecture based on KT88 or EL34 tubes, this model offers generous power and extraordinary musicality.
Its triode mode delivers intimate, refined sound, while its ultralinear mode enhances dynamics and control. It also features an MM phono input, Hi-Res Bluetooth 5.1, an integrated ESS ES9018K2M DAC, a headphone output, and a subwoofer output.
The characteristic warmth of tubes is manifested in a sonic presentation rich in harmonics, with an immersive soundstage, natural vocals, and a unique texture that only tube amplification can provide. This is complemented by superb construction, featuring select components, a robust, thick chassis, oversized transformers, and a design designed to last for decades.
A comprehensive solution for the modern audiophile who doesn't want to give up the soul of tubes.
Features:
- Output tubes: 4 x KT88 OR EL34 compatible
- Preamp valves: 2 x 12AX7 (ECC83), 2 x 6SN7
- Switchable operation: Triode or Ultralinear
- MM phono input for turntables
- Bluetooth 5.1 receiver with codecs: AAC, aptX HD, LDAC
- Integrated high-resolution ESS ES9018K2M DAC
- Left VU-Meter for manual bias adjustment
- Right VU-Meter for output power
- BMI automatic valve diagnostic system
- Headphone output and RCA subwoofer output
Connectivity:
- 2 RCA line inputs
- 1 MM phono input
- 1 Bluetooth input
- 1 headphone output (6.3 mm jack)
- 1 RCA subwoofer output
Specifications:
| Output power | 28W + 28W (Triode), 50W + 50W (UL) |
| Harmonic distortion (THD) | 0.2% (1 W, 1 kHz) |
| Frequency response | 9 Hz–45 kHz (±3 dB in UL mode) |
| Signal-to-noise ratio | 100 dB (line), 68 dB (MM phono) |
| Input sensitivity | 300 mV (line), 3 mV (phono MM) |
| Input impedance | 100 kΩ (line), 47 kΩ (MM phono) |
| RIAA Curve Errors | ≤ ±0.25 dB |
| Headphone output | 85 mW at 32 Ω |
| Maximum consumption | 310 W |
| Dimensions (W × D × H) | 420 × 379 × 215 mm |
| Net weight | 27.5 kg |
