NAD's C3030 integrated amplifier blends vintage-inspired styling with the performance and features expected from a modern integrated amplifier. Behind the design is 50 watts per channel of clean NAD power that ensures true Hi-Fi performance. With HDMI eARC, Bluetooth streaming, and a bass-managed subwoofer output, the C3030 provides versatile connectivity in an accessible entry point into the Classic Series.

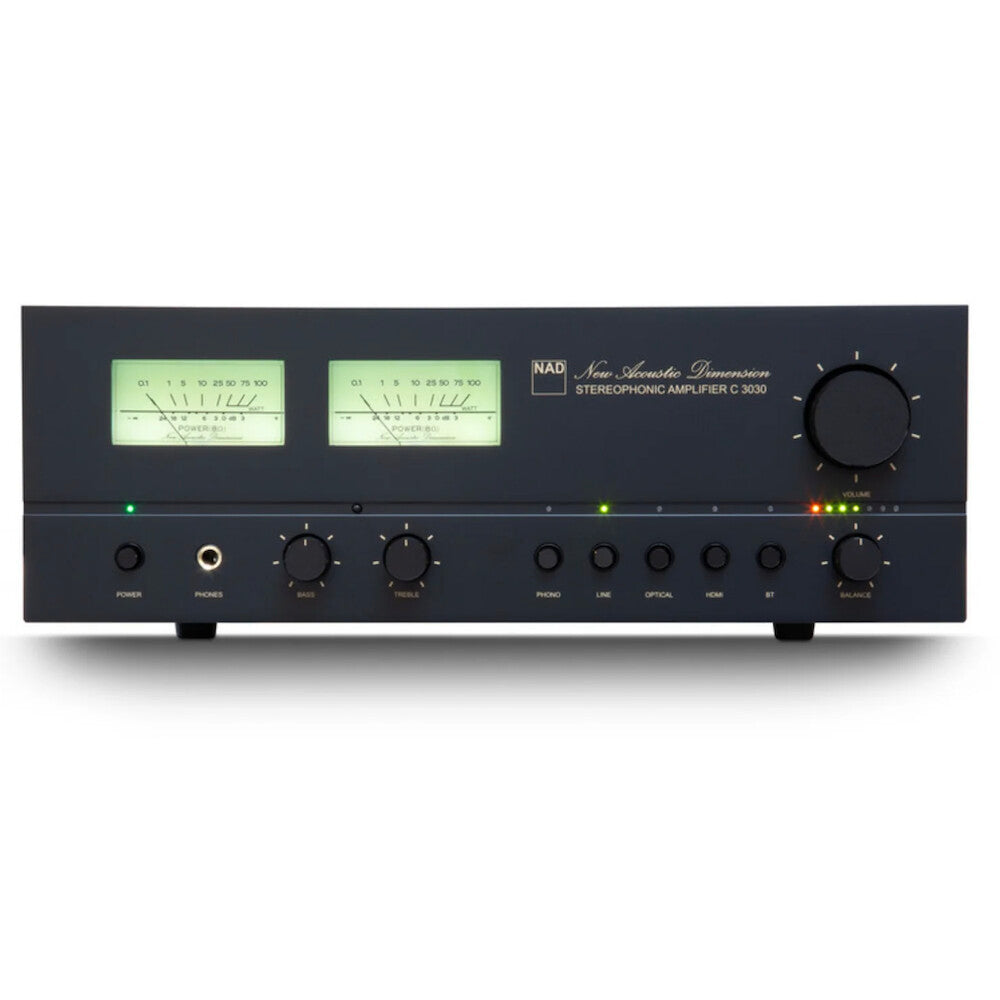

The NAD C 3030 blends vintage-inspired styling with the performance and features expected from a modern integrated amplifier. With proportions that recall the look of NAD’s early designs, the C 3030 features heritage details like VU meters and cursive branding that add character and distinction. Behind the design is 50 watts per channel of clean NAD power that ensures true Hi-Fi performance. With HDMI eARC, Bluetooth streaming, and a bass-managed subwoofer output, the C3030 provides versatile connectivity in an accessible entry point into the Classic Series.
The C 3030 has been designed with smaller living spaces in mind. Its compact footprint allows flexible placement on shelves, within media units, or in dedicated listening rooms where space is limited. The understated finish and retro design details help it blend into a variety of interiors while maintaining the distinctive character of a Classic Series amplifier.
Specifications:
PREAMPLIFIER SECTION
LINE INPUT, PRE-OUT (ANALOG BYPASS ON)
- THD (20 Hz – 20 kHz)
- <0.005 % at 4V out
- Signal-to-Noise Ratio
- >90 dB (IHF; A-weighted, 500 mV out, unity gain)
- Input impedance (R and C)
- 28 kohms + 360 pF
- Maximum input signal
- >5.7 Vrms (0.1 % THD)
- Output impedance
- 345 ohms
- Input sensitivity
- 100 mV (500 mV out, Volume maximum)
- Frequency response
- 20 Hz – 20 kHz (±0.3 dB)
- Input sensitivity
- 100 mV (500 mV out, Volume maximum)
- Frequency response
- 20 Hz – 20 kHz (±0.3 dB)
- Maximum voltage output
- >5 V (0.1 % THD)
GENERAL SPECIFICATIONS
LINE IN, SPEAKER OUT
-
- Continuous output power into 8 ohms and 4 ohms
- 50W (20 Hz-20 kHz at rated THD, both channels driven)
- THD (20 Hz – 20 kHz)
- <0.03 % (250 mW to 50 W, 8 ohms and 4 ohms)
- Signal-to-Noise Ratio
- >90 dB (A-weighted, 500 mV input, 1 W out in 8 ohms)
- Clipping power
- >70W (1 kHz 0.1 % THD, 4 ohms)
- >55W (1 kHz 0.1 % THD, 8 ohms)
- IHF dynamic power
- 8 ohms: 120 W
- 4 ohms: 250W
- 2 ohms: 390 W
LINE IN, SPEAKER OUT
- IHF dynamic power
- >16A (1 ohm, 1 ms)
- Damping factor
- >52 (20Hz to 6.5kHz, 50W 8 ohms)
- Frequency response
- 20 Hz – 20 kHz (±0.3 dB)
- Channel separation
- >75 dB (1 kHz)
- >70 dB (10 kHz)
- Input sensitivity (50 W in 8 ohms)
- 750 mV
- Frequency band
- 2.402 G- 2.480 G
- Maximum transmit power
- 7 dBm ± 2 dBm
- Power consumption, standby mode*
- 0.5 W
BluOS AUDIO
- Supported audio file format
- MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS
- Supported high- resolution audio file format
- FLAC, MQA, WAV, AIFF
- Sampling rate
- up to 192 kHz
- Bit depths
- 16 – 24
BluOS SUPPORTED SERVICES
- Music Services
- Internet Radio
- Integration partners
- Control4, Crestron, ELAN, Lutron, Push, Roon, RTI, URC
- Voice Control
- Skills and support for Amazon Alexa, Google Assistant and Apple’s Siri with corresponding enabled devices and App
BluOS CONNECTIVITY
- Network connectivity
- Gigabit Ethernet RJ45
- Wi-Fi 5
- Supported network file share protocol
- Server Message Block (SMB)
- USB
- 1 x Type-A port for connection to USB memory stick (FAT32 or NTFS formatted) and supported peripherals
- Bluetooth quality
- aptX HD 5.0
- Bluetooth connectivity
- Two-Way (Receive and Headphone modes)
