Naim Uniti Star Integrated Amplifier
Naim Uniti Star Integrated Amplifier
Couldn't load pickup availability
Free Express Shipping In Canada
Canadian Warranty
Professional Customer Experience
Description
Usually Ships Within A Few Days.

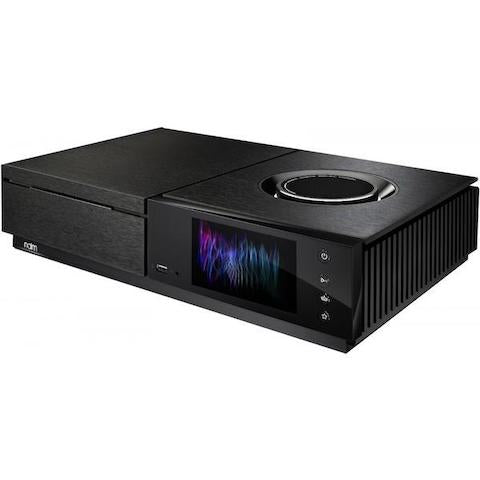

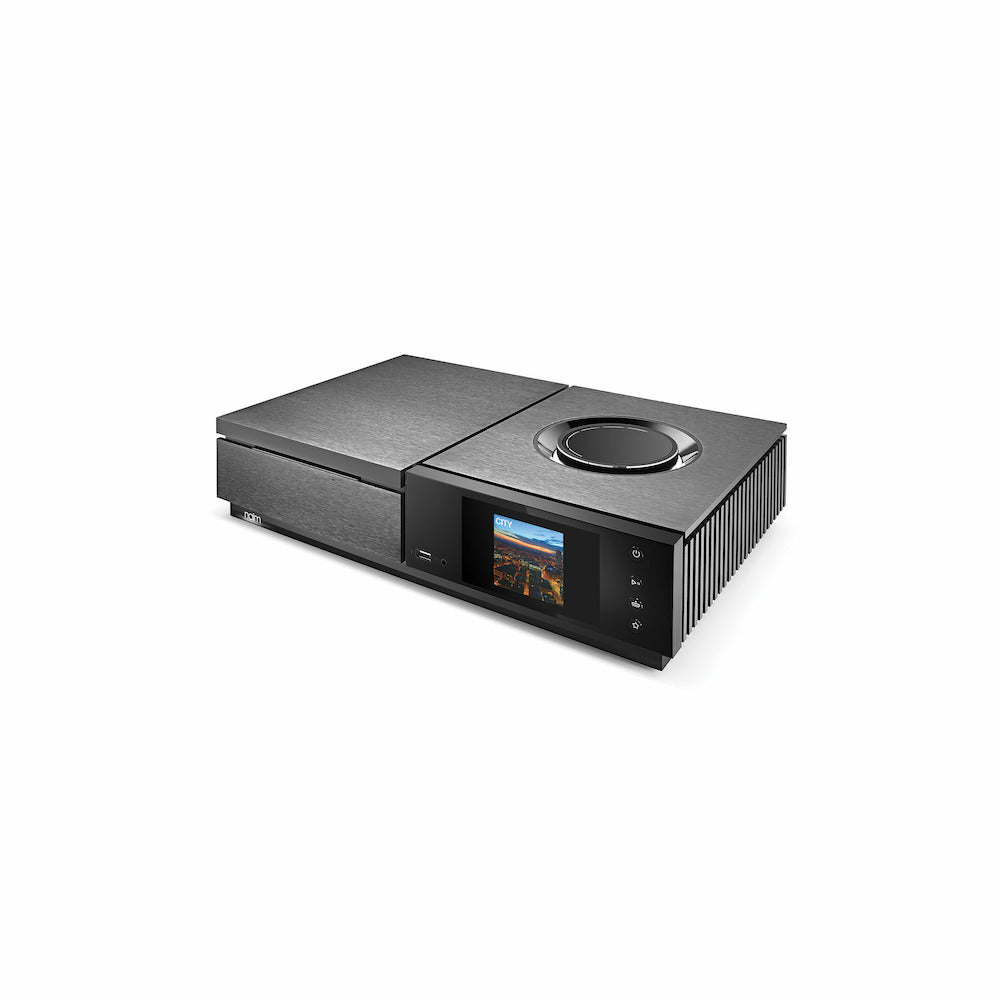

Uniti Star features a full-colour 5” LCD glass display with a proximity sensor that wakes up as you approach it, accompanied by a bidirectional intelligent remote control that works in harmony with the unit’s volume control. Giving you complete freedom of movement, Uniti is a joy to use.
At the heart of Uniti is an audiophile volume control which adjusts level in the analogue domain to a premium digital resolution. The design is taken from our NAC-N 272 streaming preamplifier and its buttery-smooth rotation is inspired by our reference amplification system, Statement. We’ve also hidden the Bluetooth antenna here for a seamless aesthetic.
Specifications:
Format: Standard CD format
Quantization: 16 bits
Sampling frequency: 44.1 kHz
Error correction principle: CIRC
Number of channels: 2
Revolution speed: 500 to 200 rpm (CLV)
Scan velocity: 1.2 to 1.4 m/s, constant
Data Read Principle: Non-contact optical pickup
Laser Diode GaAlAs (double hetero-junction visible-spectrum semiconductor laser diode) Wavelength: 667 nm
Transport Outputs COAXIAL Format: IEC 60958 compliant
OPTICAL Format: JEITA CP-1212 compliant
Digital Inputs COAXIAL Format: IEC 60958 AES-3 compliant
Suitable cable: 75-ohm coaxial digital cable
OPTICAL Format: JEITA CP-1212 compliant
Suitable cable: JEITA standard optical fiber cable
USB Format: USB 2.0 Hi-Speed (480 Mbps) compliant
Suitable cable: USB 2.0 cable
Sampling Frequencies:
COAXIAL: 32 kHz to 192 kHz (16 to 24 bits, 2-channel PCM)
OPTICAL: 32 kHz to 96 kHz (16 to 24 bits, 2-channel PCM)
USB:32 kHz to 384 kHz (16 to 32 bits, 2-channel PCM) 2.8224 MHz, 5.6448 MHz, 11.2896 MHz (1-bit 2-channel DSD) (11.2896 MHz: ASIO only) D/A Converter 4MDS principle
Frequency Response: 0.7 to 50,000 Hz +0, –3.0 dB
Total Harmonic Distortion: 0.0008% (20 to 20,000 Hz)
Signal-to-Noise Ratio: 117 dB
Dynamic Range: 113 dB
Channel Separation: 113 dB
Output Voltage and Impedance:
BALANCED: 2.5 V, 50 ohms, balanced XLR type
LINE: 2.5 V, 50 ohms, RCA phono jack
Output Level Control: 0 dB to –60.0 dB in 1-dB steps (digital)
Power Requirements: 120/220/230 V AC, 50/60 Hz (voltage as indicated on rear panel)
Power Consumption: 13 W
Max. Dimensions Width: 465 mm, Height: 151 mm, Depth: 393 mm
Mass: 14.0 kg, 20.0 kg in shipping carton
| Digital (S/PDIF) |
2 x Optical TOSLink (up to 24bit/96kHz) |
| Analogue |
1 x RCA |
| USB |
2 x USB Type A Socket (front and rear) |
| Memory Card |
1 x SD Card |
| Streaming |
Chromecast Built-In, Apple AirPlay, TIDAL, |
| DAB/FM |
Optional DAB/FM module available (release date to be confirmed) |
| Analogue |
1 x Stereo power amplifier |
| Network |
Ethernet (10/100Mbps), WiFi (802.11 b/g/n/ac with internal antennae) |
| Multiroom |
Serve up to 4 network-connected players via UPnP™ at full CD quality. Party Mode Streaming: Sync up to six Uniti all-in-one players or other Naim streamers and control via the Naim app. |
| Updates |
Update your system wirelessly via the Naim app. |
| Storage |
Store up to 20,000 tracks to a local USB connected storage device and serve to a network-connected player. |
| CD Ripping |
Create bit-perfect copies of your CDs, store them on the local storage and play back. |
| CD Formats |
Audio CD (Red Book, CD and CD-R) |
| Audio Formats |
WAV - up to 32bits/384kHz Notes: Gapless playback supported on all formats. All formats to 384kHz maximum over wireless network. |
| Internet Radio Provider |
vTuner premium 5* |
| Internet Radio Formats |
Windows Media-formatted content, MP3, ACC, OGG Vorbis streams and MMS |
| Amplifier Output |
70W per channel into 8 ohms |
| Power Consumption |
Typical use: 130W |
| Mains Supply |
100V, 115V, 230V; 50 or 60Hz |
| Handheld |
zigbee RF4CE |
| App Control |
Naim App for iOS and Android |
| Front Panel |
5"" colour LCD display and rotary volume control with proximity sensor and four buttons |
| Dimensions |
95mm x 432mm x 265mm (HxWxD) |
| Weight |
12kg |
| Finishes |
Brushed and anodised aluminium |
| Supplied with |
Remote control, Power-Line Lite mains cable (UK denominations only), cleaning cloth and quick start guide. |
| Amplification |
External power amplifier or sub-woofer |
| Mains Cable |
Power-Line mains cable |
